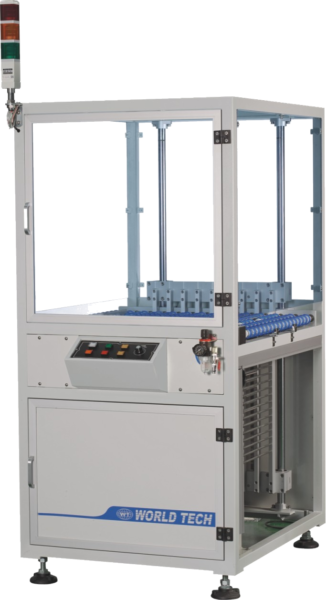

World Tech 20 slots Buffer
Frame is made by SS41 with powder paint coating.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High accuracy
High efficiency
High quality
Information
Machine Model
20 slots Buffer
Manufacturer
World Tech
Key Features
1 year warranty, Easy operation, High accuracy, High efficiency, High quality
Description:
■ Operation button using push-button simple.
■ Supporting bar cantilever design, supporting bar in stainless steelproduction, outsourcing PE plastic material, non-pollution board pieces.
■ To tooth-belt transmission, silent and pollution-free, do not come on.
■ Before and after the manufacturing process can be used with close board, kite board, temporary storage, such as a chain.
■ A card board feature detector to ensure that the board not to hurt the case.
Technical Data
Specification
Model
WT-0447
Machine dimensions LxWxH mm
820*1000*1680
Working Width
720mm
Working Thickness
0.1-3.2mm
Max. panel size
610*610mm
Min. panel size
300*300mm
Max.Speed
8pcs/min
Speed of Conveyor
1-10m/min
