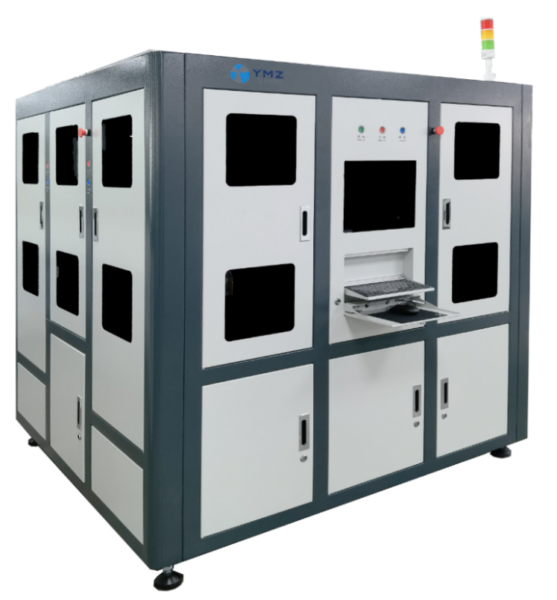

Image Automatic Visual Inspection Machine - Small Size Dual-Table Series

It can be used for HASL, immersion tin, immersion gold, gold plating, immersion silver, OSP anti-oxidation board, etc.

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

High accuracy

High efficiency

High quality

High speed

Information

Machine Model

Automatic Visual Inspection Machine - Small Size Dual-Table Series

Manufacturer


Key Features

1 year warranty, High accuracy, High efficiency, High quality, High speed

Description:

Belt conveyor system, dual-sided simultaneous inspection for high efficiency

Adjustable multi-angle light source for excellent illumination and high imaging quality

Dual feeding platform, dual unloading platform, double-sided dust adhesion, support dual check detection

Self-developed AI, deep integration with analysis software, effective filtration, labor-saving

Standard IR light technology, capable of detecting defects under ink

Optional hole inspection and warping detection

AD420 Technical Specifications

Technical Data

Specification

Board Size（mm）

Min：50×80 Max：300×420

Dual Panel Size（mm）

Max：140×420

Resolution

10-25μm/pixel

Data Formats

ODB++, RS-274X conversion

Defect Confirmation

AVI online confirmation + VRS separate confirmation

Environmental

Temperature: 18-25℃ Humidity: RH40-70%

Power Requirements

Power Supply: Single-phase three-wire AC220V, 50Hz ；Compressed Air：0.5-0.7Mpa，φ10mm
