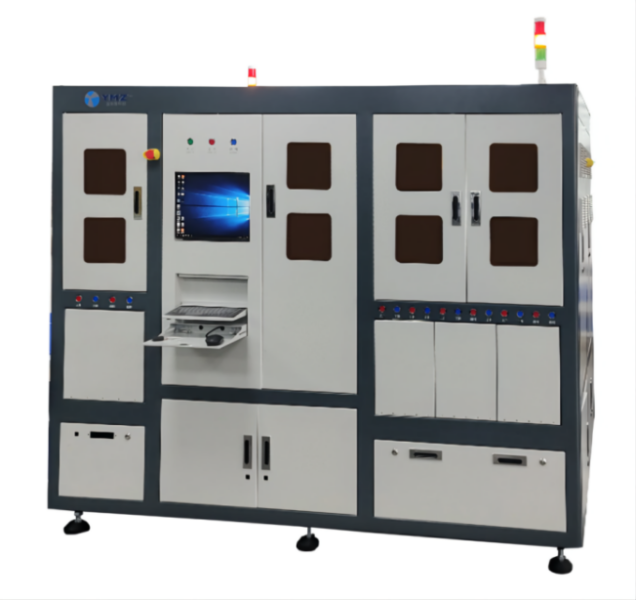

Board Visual Inspection Machine—AH300
Can detect scratches, dents, pollution, foreign matter, exposed copper, open and short circuits, etc.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High accuracy
High efficiency
High quality
Information
Machine Model
Board Visual Inspection Machine—AH300
Key Features
1 year warranty, Easy operation, High accuracy, High efficiency, High quality
Description:
High-precision design, table-based inspection.
Fully automatic material handling table, reducing manual contact
Multi-functional light source with scanning function switching capability
Self-create AI with deep learning for effective filtering and reduced manual labor
Customized Clip-Type Loading and Unloading
G. System SpecificationsTechnical Data
Specification
Resolution
2.5μm/pixel、3μm/pixel、5μm/pixel
Board Size（mm）
Min：30×L50 Max：150×300
Board Thickness（mm）
0.08-2
Light Source
ED White Light + IR Infrared Light(digitally adjustable, software-controlled)
Camera Type
Color line scan camera
Power Requirements
Power Supply: Single-phase three-wire AC220V, 50Hz；Compressed Air：0.5-0.7Mpa，φ10mm，100L/min
Equipment Dimensions
2350×H1720×1980 (mm)
Equipment Weight
3000KG
For further information about our range of Inspection equipment, or parts available on these products call us on +44 (0) 2380 667 486
