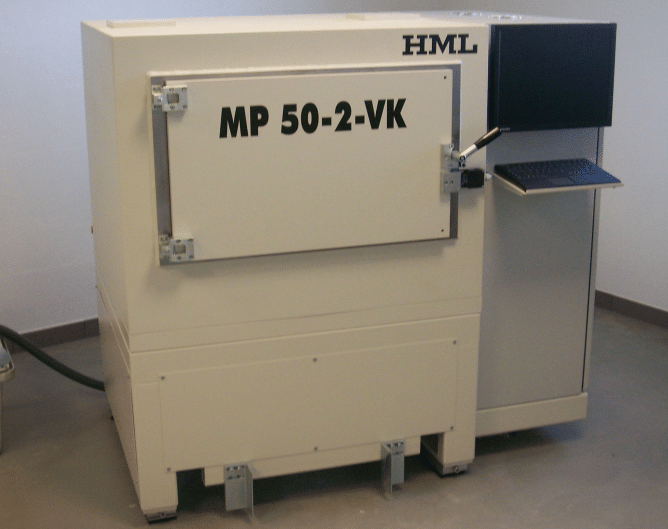

HML Bonding press The MP 50 Series

The maximum usefull area of 560 x 500 mm gives enough capacity for small series and protopype production. The complete range of handling & tools is also available for this line.

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

Can be customised

Compact design

Easy operation

High accuracy

High quality

Information

Machine Model

Bonding press The MP 50 Series

Manufacturer

HML

Key Features

Can be customised, Compact design, Easy operation, High accuracy, High quality

Description:

The MP 50 Series Line is adressed to all companies who look for a full equiped press system by reduced dimensions. All features like vacuum chamber with plc controll like in a full size systems are inculded in this package.

G. System Specifications

Technical Data

Specification

Number of opening

1(2)

Number of plates

2(3)

Inter width(mm)

180(90)

Max. laminator surface(mm)

560 x 500

Max. temperature(℃)

300(350 option)

Measurements L x W x H(mm)-Press with control unit

1400 x 1000 x 1500

Measurements L x W x H(mm)-Hydralic/vacuum unit

1000 x 560 x 700
