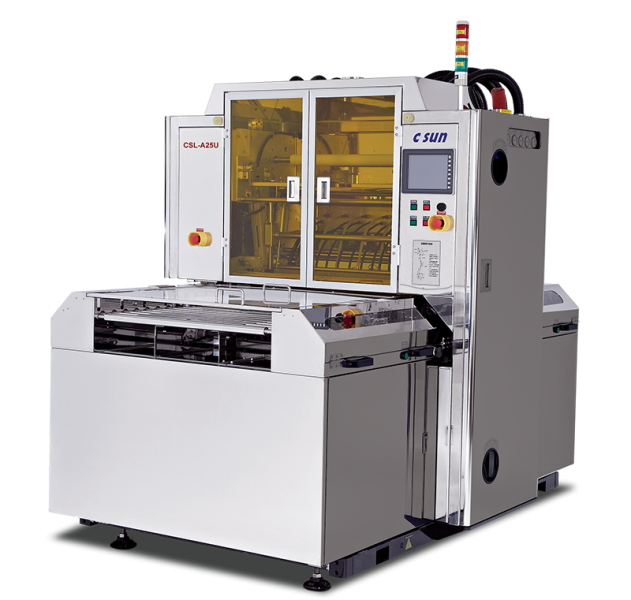

C Sun AUTO CUT-SHEET LAMINATOR CSL-A25U
Designed for laminating various sized products Convenience:Moveable inlet and outlet section create a cinvenient operating space.Rail-mounted hot roller makes the disassembly simple Continuous Lamination:Optional sheet-to-roll device satisofoes the continuous FPC lamination process
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
High quality
Low dust pollution
Outstanding reliability
Information
Machine Model
AUTO CUT-SHEET LAMINATOR CSL-A25U
Manufacturer
C Sun
Key Features
1 year warranty, High quality, Low dust pollution, Outstanding reliability
Description:
- Thin Substrate Transportion:Patented two-stage transfer device contributes stabilization and relability for 2mi thin substrate
- Pressure Uniformity:Patented lever mechanism of hot roller brings the optimal lamination quality
- Tension guiding:Unique negative pressure chamber establishes the tension for dry film tail end bringing more stable lamination
- Cleanliness:The laminator meets class 1000 clean room classification standard
Technical Data
Specification
Panel dimensions
Length: 250 - 640mmWidth: 250 - 640mmThickness: 0.05mm ~ 3.2mm(Without copper); 0.05 - 1.6mm(with copper)
Dry film dimensions
Width: 250 - 610mmThickness: 15 - 76µmSupply roll diameter: ɸ160-250mm max.
Lamination process
Conveyor speed: 1 ~ 5m/min Processing capacity: 4pcs/min Pressure: 2 ~ 5kg/cm² Tacking time: 1 ~ 3sec Temperature: Ambient to 120°C Pressure roll size: ɸ80 x 760mm Induction heater: 1.5KW x2
Machine dimensions
1575 x 2160 x 2100mm (WDH)
Machine weight
1600kg
