Other Dual table automatic in-line depanelling machine
Depanelling machine used for PCB seperating
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High efficiency
High speed
Information
Machine Model
Dual table automatic in-line depanelling machine
Manufacturer
Other
Key Features
1 year warranty, Easy operation, High efficiency, High speed
Description:
Dual table automatic in-line depanelling machine used for PCB seperating. Can load, cut and unload PCB's automatically to meet the needs of an automatic factory. Featuring dual working tables for placing and cutting PCB's to enhance the efficiency of operation.With a Windows operating system and high speed spindle this equipment is easy to use and capable of high precision work.

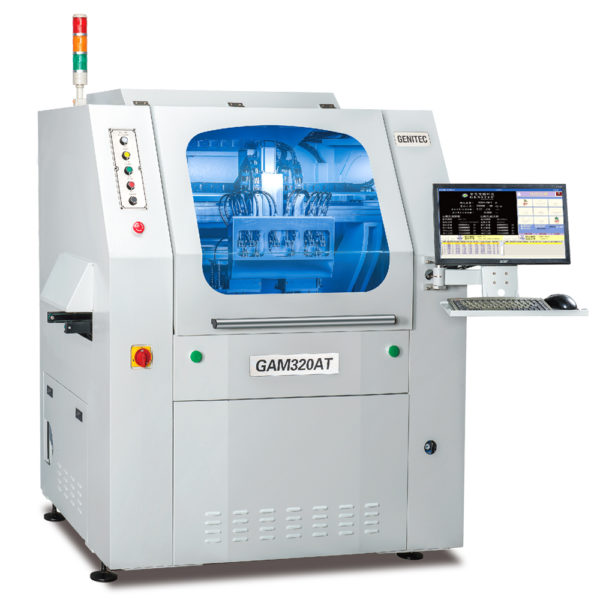

GAM320AT depanelling machine Technical SpecificationsTechnical Data
Specification
Working table
350 x 300mm
No. of working table
2
Repeat precision
±0.01mm
Cutting precision
≤±0.1mm
Spindle speed
60,000rpm (options available)
Cutting speed
1-100mm/s (adjustable)
Operating system
Windows
Machine dimensions
1602 x 1426 x 1704mm (WDH)
Machine weight
750kg
Technical Data
Specification
Working table
350 x 300mm
No. of working table
2
Repeat precision
±0.01mm
Cutting precision
≤±0.1mm
Spindle speed
60,000rpm (options available)
Cutting speed
1-100mm/s (adjustable)
Operating system
Windows
Machine dimensions
2105 x 1662 x 1716mm (WDH)
Machine weight
800kg
Technical Data
Specification
Working table
150 x 150mm
No. of working table
2
Repeat precision
±0.01mm
Cutting precision
≤±0.1mm
Spindle speed
60,000rpm (options available)
Cutting speed
1-100mm/s (adjustable)
Operating system
Windows
Machine dimensions
840 x 1025 x 1642mm (WDH)
Machine weight
500kg
Technical Data
Specification
Working table
450 x 420mm
No. of working table
2
Repeat precision
±0.01mm
Cutting precision
≤±0.1mm
Spindle speed
60,000rpm (options available)
Cutting speed
1-100mm/s (adjustable)
Operating system
Windows
Machine dimensions
2210 x 1554 x 1745mm (WDH)
Machine weight
1000kg
For further information about our range of Drilling & Routing machines, or parts available on these products call us on +44 (0) 2380 667 486
