Other Dual table off-line depanelling machine
Depanelling machine used for PCB seperating
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High efficiency
High speed
Information
Machine Model
Dual table off-line depanelling machine
Manufacturer
Other
Key Features
1 year warranty, Easy operation, High efficiency, High speed
Description:
Dual table off-line depanelling machine used for PCB seperating. Featuring a dual table enhancing production efficiency. Equipped with a Windows operating system and high speed spindle this equipment is easy to use and capable of high precision work.

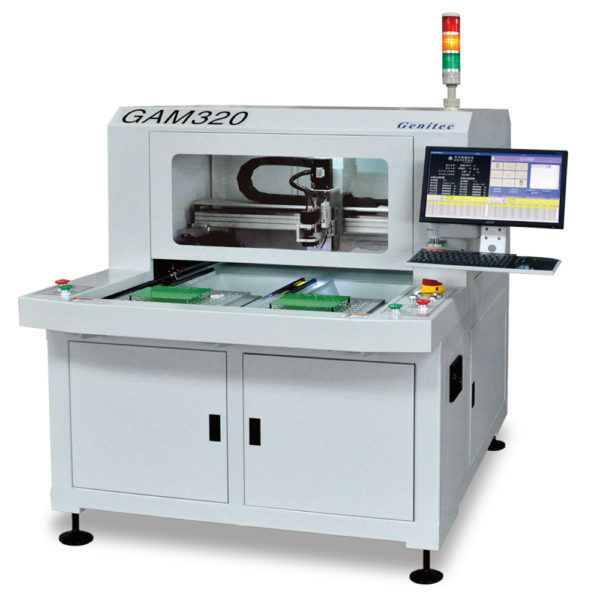

GAM320 depanelling machine Technical SpecificationsTechnical Data
Specification
Working table
350 x 300mm
No. of working table
2
Repeat precision
±0.01mm
Cutting precision
≤±0.1mm
Spindle speed
60,000rpm (options available)
Cutting speed
1-100mm/s (adjustable)
Operating system
Windows
Machine dimensions
1245 x 1315 x 1550mm (WDH)
Machine weight
500kg
Technical Data
Specification
Working table
450 x 500mm
No. of working table
2
Repeat precision
±0.01mm
Cutting precision
≤±0.1mm
Spindle speed
60,000rpm (options available)
Cutting speed
1-100mm/s (adjustable)
Operating system
Windows
Machine dimensions
1445 x 1670 x 1550mm (WDH)
Machine weight
610kg
Technical Data
Specification
Working table
300 x 350mm
No. of working table
2
Repeat precision
±0.01mm
Cutting precision
≤±0.1mm
Spindle speed
60,000rpm (options available)
Cutting speed
1-100mm/s (adjustable)
Operating system
Windows
Machine dimensions
1220 x 1150 x 1454mm (WDH)
Machine weight
480kg
Technical Data
Specification
Working table
450 x 500mm
No. of working table
2
Repeat precision
±0.01mm
Cutting precision
≤±0.1mm
Spindle speed
60,000rpm (options available)
Cutting speed
1-100mm/s (adjustable)
Operating system
Windows
Machine dimensions
1500 x 1385 x 1473mm (WDH)
Machine weight
600kg
