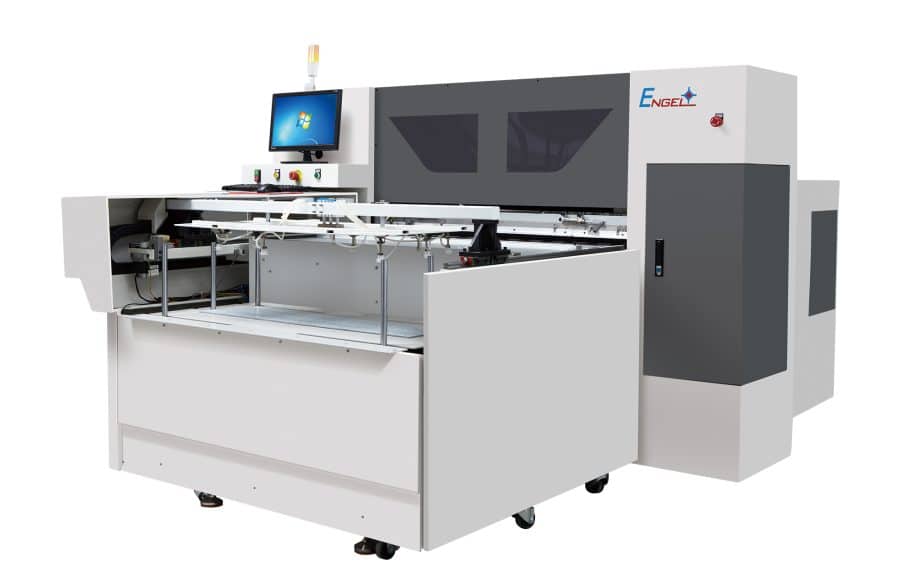

Other EGV08AC CCD automatic V-Scoring machine

A smart control system developed based on LinUX, with strong anti-interference ability, stability Adopting high-speed linear motor, never worn out, with long service life, fast speed, and high accuracy

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Can be customised

Easy operation

High accuracy

High efficiency

Information

Machine Model

EGV08AC CCD automatic V-Scoring machine

Manufacturer

Other

Key Features

1 year warranty, Can be customised, Easy operation, High accuracy, High efficiency

Description:

Low cost high performance automatic V-Cut scoring machine with fixed tooling and a windows based operating system suitable for single sided, double sided, multi-layer, rigid-flex PCB, aluminium PCB, copper PCB and nonmetal PCB. Featuring a jump scoring function, graphic control, high accuracy and easy operation.

Specifications can be customised to suit your requirements, contact us now to discuss your needs.

G. System Specifications

Technical Data

Specification

PCB dimensions

Min.:150*150mm Max.:820*820mm

PCB thickness

0.3 ~ 3.5mm

Cutter details

OD: ɸ120mmID: ɸ25.4mmThickness: 2mmNo. of teeth: 20T ~ 100T

Cutter tool RPM

12,000RPM
