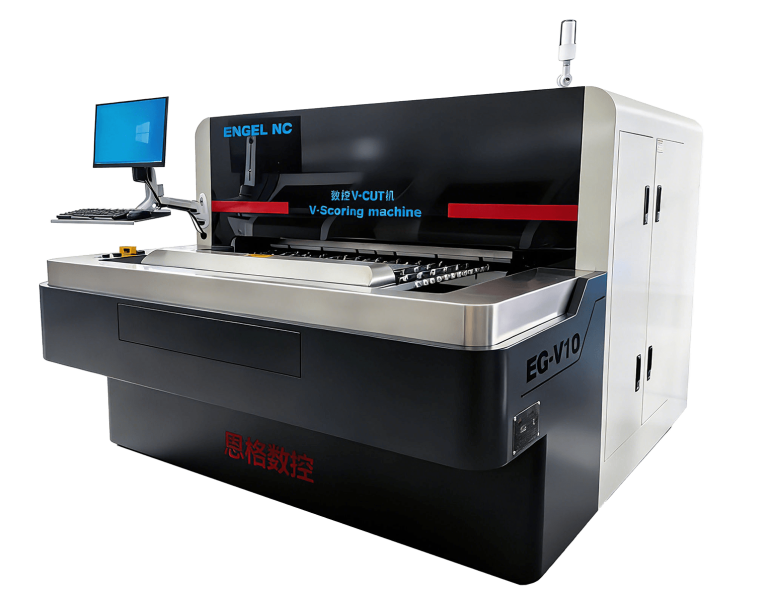

Other EGV10 scoring machine
Automatic V-Cut scoring machine
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Can be customised
Easy operation
Low cost
Precision excellence
Sieb & Meyer control
Information
Machine Model
EGV10 scoring machine
Manufacturer
Other
Key Features
1 year warranty, Can be customised, Easy operation, Low cost, Precision excellence, Sieb & Meyer control
Description:
Low cost high performance automatic V-Cut scoring machine with fixed tooling and a windows based operating system suitable for single sided, double sided, multi-layer, rigid-flex PCB, aluminium PCB, copper PCB and nonmetal PCB. Featuring a jump scoring function, graphic control, high accuracy and easy operation.
Specifications can be customised to suit your requirements, contact us now to discuss your needs.
G. System SpecificationsTechnical Data
Specification
PCB dimensions
Min: 100 x 100mmMax: 630 x 1250mm
PCB thickness
0.4 ~ 3.2mm
Cutter details
OD: ɸ120mmID: ɸ25.4mmThickness: 2mmNo. of teeth: 20T ~ 100T
Cutter tool RPM
6,000RPM
Cutting speed
0 ~ 50M/min
Air pressure & consumption
5kg/cm²
For further information about our range of Scoring machines, or parts available on these products call us on +44 (0) 2380 667 486
Contact us
