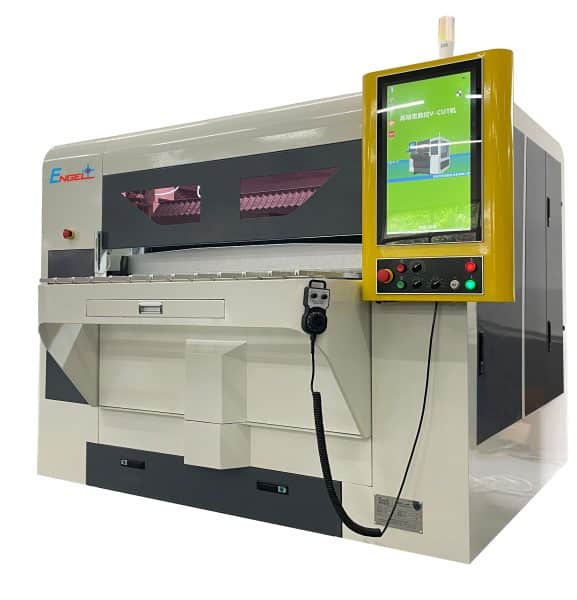

Other EGV12 scoring machine

Automatic V-Cut scoring machine

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Can be customised

Easy operation

High accuracy

High speed

Sieb & Meyer control

Information

Machine Model

EGV12 scoring machine

Manufacturer

Other

Key Features

1 year warranty, Can be customised, Easy operation, High accuracy, High speed, Sieb & Meyer control

Description:

Low cost high performance automatic V-Cut scoring machine with variable tooling and a windows based operating system suitable for single sided, double sided, multi-layer, rigid-flex PCB, aluminium PCB, copper PCB and nonmetal PCB. Featuring a jump scoring function, graphic control, high accuracy and easy operation.

Specifications can be customised to suit your requirements, contact us now to discuss your needs.

G. System Specifications

Technical Data

Specification

PCB dimensions

Min: 100 x 100mmMax: 630 x 1250mm

PCB thickness

0.3 ~ 3.2mm

Cutter details

OD: ɸ120mmID: ɸ25.4mmThickness: 2mmNo. of teeth: 20T ~ 100T

Cutter tool RPM

6,000RPM

Cutting speed

0 ~ 50M/min

Air pressure & consumption

5kg/cm²

Machine dimensions

1900 x 2280 x 1585mm (LWH)

Machine weight

3000kg
