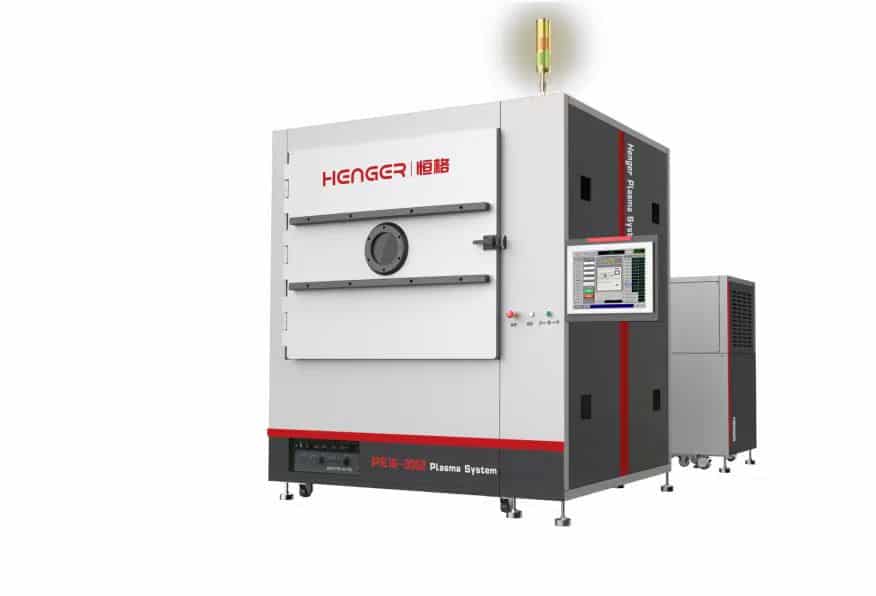

Henger Horizontal Plasma
Removable panel in the cavity: protect the cavity, easy to clean, improve efficiency, improve bite uniformity
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High accuracy
High efficiency
High quality
Information
Machine Model
Horizontal Plasma
Manufacturer
Henger
Key Features
1 year warranty, Easy operation, High accuracy, High efficiency, High quality
Description:
- Suitable for PCB sheet, FPC, FPC plasma applications
- It is convenient and fast for thin plate mounting
- The industry is widely used for FPC and FPC inner layer coarsening and surface cleaning
Technical Data
Specification
Maximum panel size
28X42inch
Panel thickness
0.024~1mm
Minimum panel size
4X4inch
Power @ Frequency
10KW@40kHZ
Dimension (mm)
1918*1410*1920
Technical Data
Specification
Maximum panel size
28X49inch
Panel thickness
0.024~1mm
Minimum panel size
4X4inch
Power @ Frequency
15KW@40kHZ
Dimension (mm)
2121*1460*2230
For further information about our range of Equipment, or parts available on these products call us on +44 (0) 2380 667 486
