Other Impress AOI Automation System
Impress AOI system commonly used in the manufacturing process including bare board inspection, solder paste inspection (SPI), pre-reflow and post-reflow as well as other stages.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High productivity
High speed
Information
Machine Model
Impress AOI Automation System
Manufacturer
Other
Key Features
1 year warranty, Easy operation, High productivity, High speed
Description:

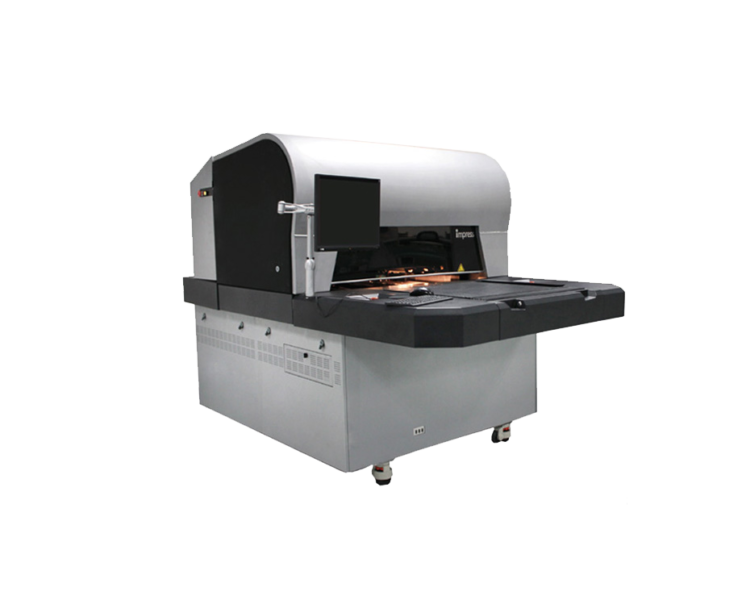

Impress AOI system commonly used in the manufacturing process including bare board inspection, solder paste inspection (SPI), pre-reflow and post-reflow as well as other stages. This high speed model offers real-time scanning increasing productivity.
AOI Impress Q5/Q5+ Technical SpecificationsTechnical Data
Specification
Testing Size
1.8mil (45µm) L/S
Line Width
4/3/1.8
Micro
100/75/45
Sides/H
210/160/100
Data Input
CAM
Panel Registration
Pinless registration-panel edge alignment (allow ±80mil placement and ±2.5°deviation)
Board Thickness
1 - 300mil
Max. Board Size
30 x 27.5" (762 x 698mm)
Scanning light source
Halogen lamp/Led Lamp
CCD
8K Linear CCD designed, easy to capture light's signal from board surface, and incease fine shorts detect ability
Dimension
2015 x 1500 x 1685mm (LWH)
Technical Data
Specification
Testing Size
1.4mil (35µm) L/S
Line Width
3/2/1.4
Micro
75/50/35
Sides/H
190/125/90
Data Input
CAM
Panel Registration
Pinless registration-panel edge alignment (allow±80mil placement and ±2.5°deviation)
Board Thickness
1 - 300mil
Max. Board Size
30 x 27.5" (762 x 698mm)
Scanning light source
Halogen lamp/Led Lamp
CCD
8K Linear CCD designed, easy to capture light's signal from board surface, and incease fine shorts detect ability
Dimension
2015 x 1500 x 1685mm (LWH)
Technical Data
Specification
Testing Size
1.2mil (30µm) L/S
Line Width
2/1.5/1.2
Micro
50/38/30
Sides/H
160/115/85
Data Input
CAM
Panel Registration
Pinless registration-panel edge alignment (allow±80mil placement and ±2.5°deviation)
Board Thickness
1 - 300mil
Max. Board Size
30 x 27.5" (762 x 698mm)
Scanning light source
Halogen lamp/Led Lamp
CCD
8K Linear CCD designed, easy to capture light's signal from board surface, and incease fine shorts detect ability
Dimension
2015 x 1500 x 1685mm (LWH)
For further information about our range of Inspection equipment, or parts available on these products call us on +44 (0) 2380 667 486
