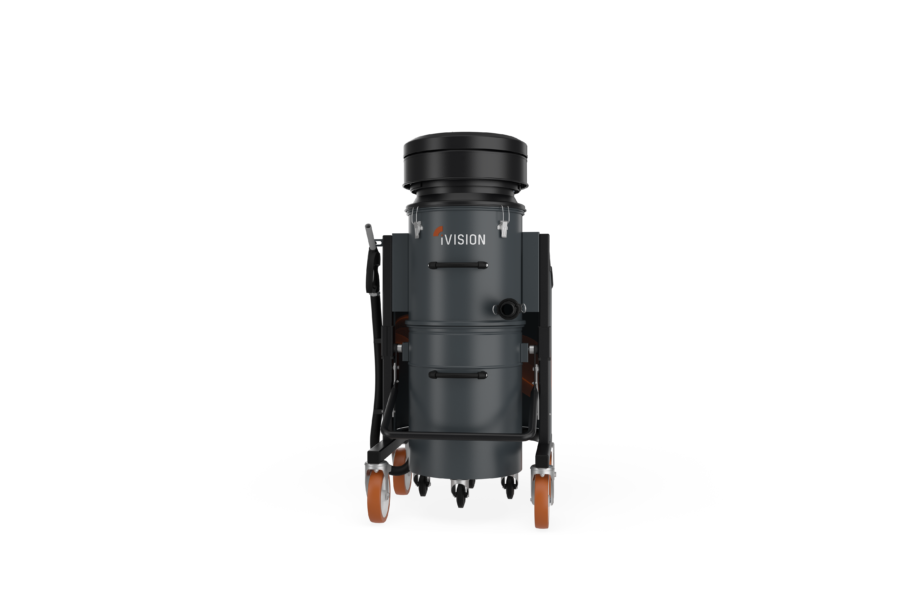

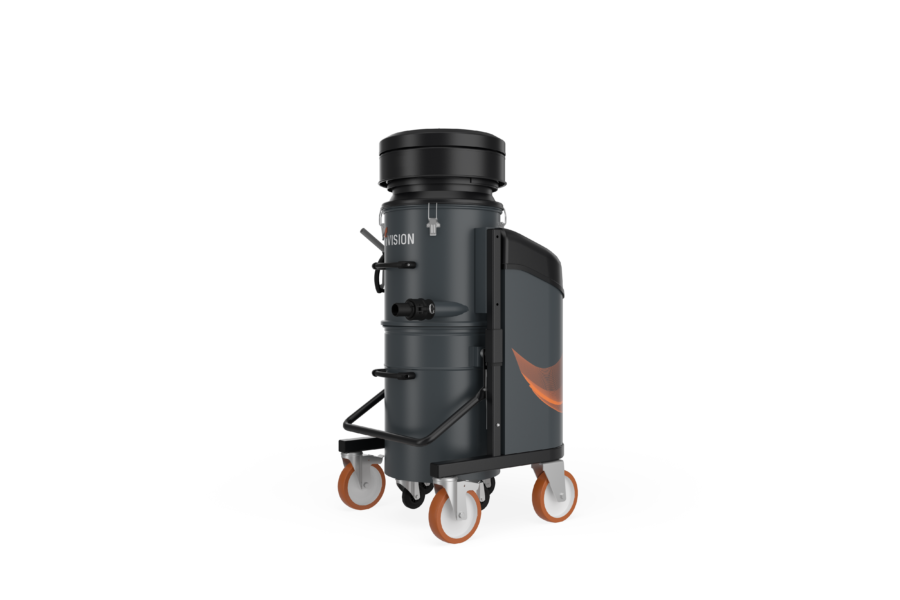

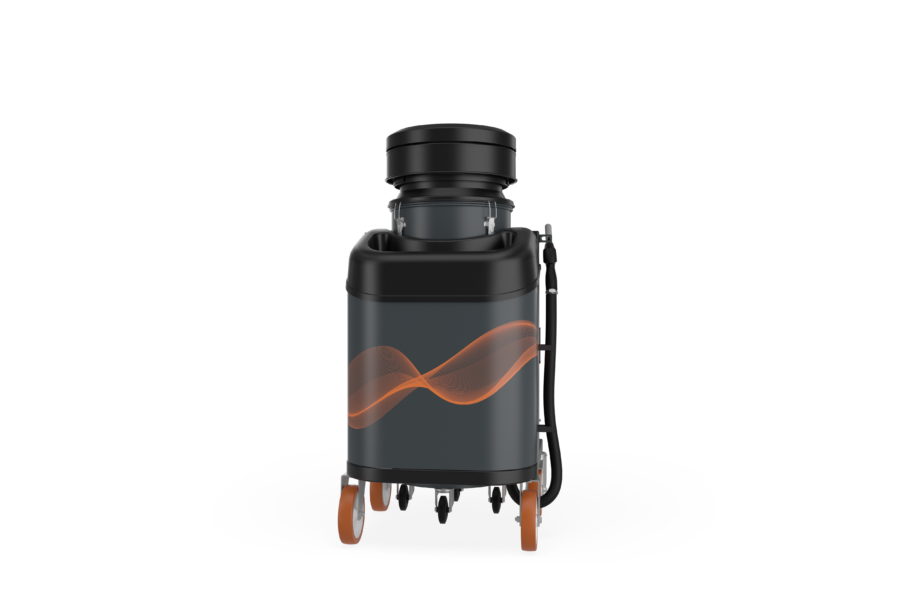

Industrial vacuum cleaner EMULSIO 100 1~

INDUSTRIAL VACUUM CLEANER FOR THE COLLECTION AND SEPARATION OF CHIPS AND OIL

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Easy operation

High efficiency

High quality

Information

Part Number

Industrial vacuum cleaner EMULSIO 100 1~

Manufacturer

iVision

Key Features

1 year warranty, Easy operation, High efficiency, High quality

Description:

The vacuum cleaners in the EMULSIO line are equipped with the high suction capacity of chips and liquids, double separator for chips, level float, tangent inlet with integrated cyclone, 3D filter to abate oily mists and manual unloading. In the full optional configuration, EMULSIO 100 is equipped with a nozzle for automatic discharging and a practical ergonomic storage compartment to aid the cleaning operations.

G. System Specifications

Technical Data

Specification

POWER

3,6KW

FREQUENCY

50Hz

SUPPLY VOLTAGE

230V

MAXIMUM NEGATIVE PRESSURE

233mbar

MAXIMUM AIR FLOW RATE

610m³/h

SOLID CAPACITY

40Lt

LIQUID CAPACITY

100Lt

BASKET SEPARATOR FILTRATION

106µm

UNLOADING SPEED

60Lt/min

SOUND PRESSURE LEVEL

75dB(A)

DIMENSION

150*70*76

WEIGHT

140KG

FILTER

Class L Poliestic
