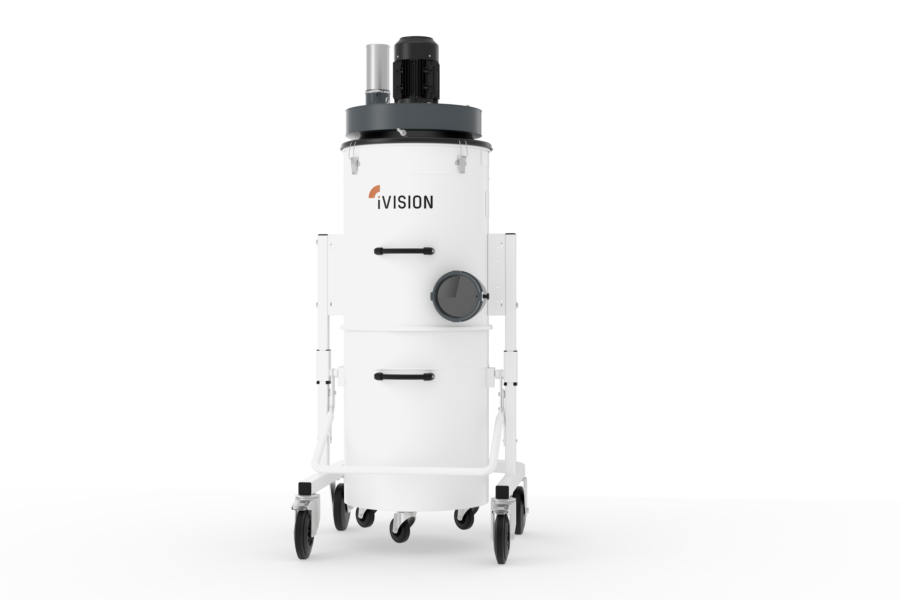

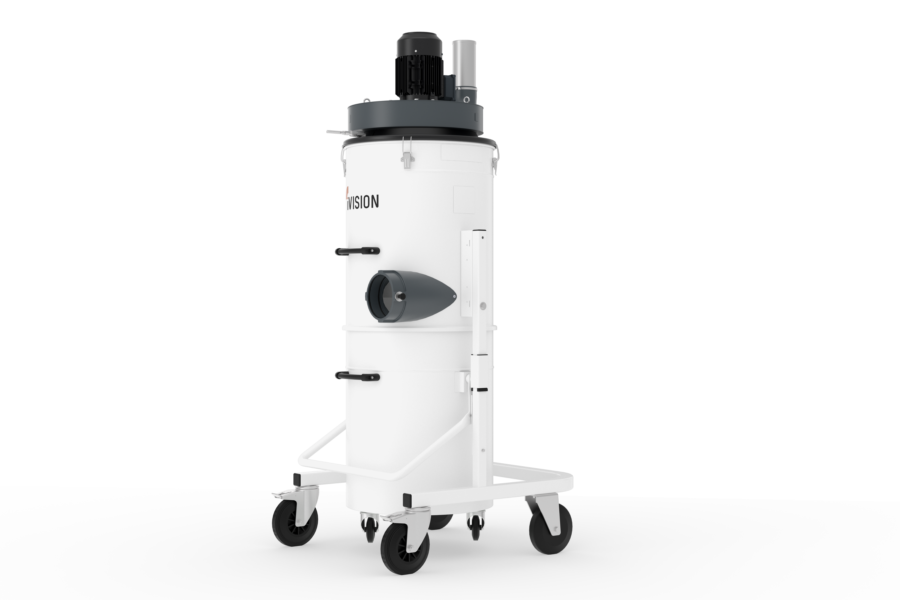

Industrial vacuum cleaner EXTRUSION 160

INDUSTRIAL VACUUM CLEANER FOR ALUMINIUM AND PVC CHIPS

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Easy operation

High efficiency

High quality

Information

Part Number

Industrial vacuum cleaner EXTRUSION 160

Manufacturer

iVision

Key Features

1 year warranty, Easy operation, High efficiency, High quality

Description:

EXTRUSION 160 litres is ideal for use paired with double-head cutting-off machines or automatic cutting centres with high chip and dust production. Thanks to the very broad range of industrial vacuum cleaners and the almost countless possibilities of customisation, iVision is able to fulfil almost every chip extraction need on machine tools in the extrusion world, by combining attention and care to the design with strong, strictly ‘made in Italy’ materials.

Industrial vacuum cleaner EX3S022 Technical Specifications

Technical Data

Specification

POWER

2,2KW

FREQUENCY

50Hz

SUPPLY VOLTAGE

400V

MAXIMUM NEGATIVE PRESSURE

30mbar

MAXIMUM AIR FLOW RATE

1400m³/h

INLET DIAMETER

160ømm

NUMBER OF INLETS

1 Tangential

CONTAINER CAPACITY

160Lt

SOUND PRESSURE LEVEL

80dB(A)

DIMENSION HxLxW cm

203*91*84

WEIGHT

125KG

FILTER

Conical Shaft Class M Antistatic

FILTER AREA

1,47m²

TYPE OF FILTER CLEANING STANDARD CONFIGURATION

Vibration
