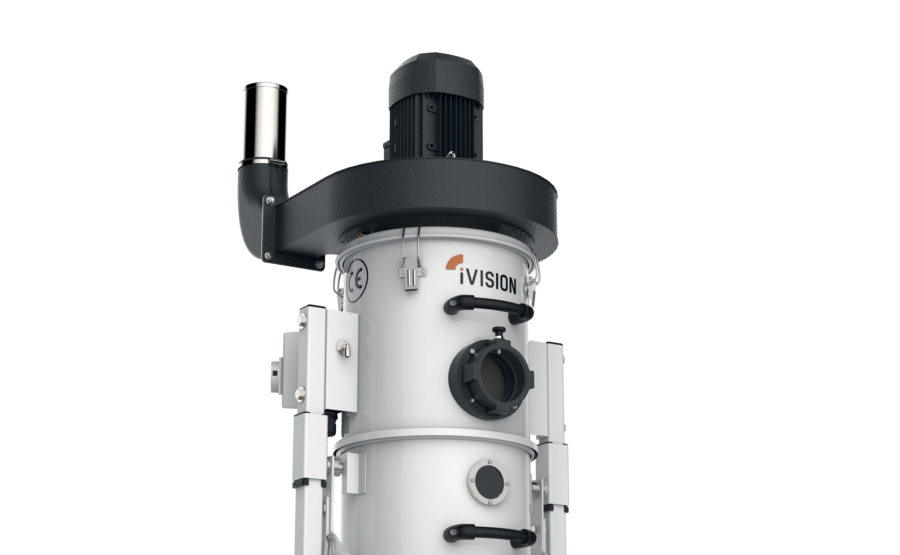

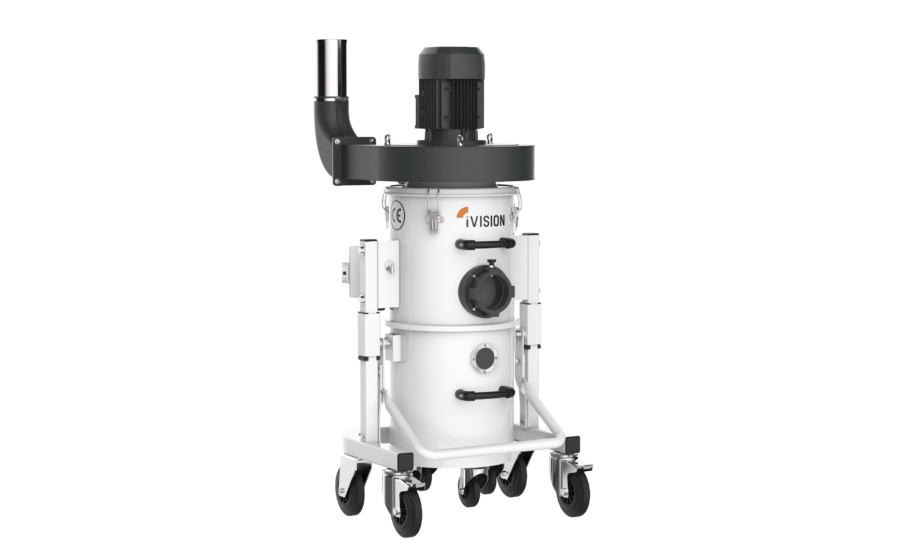

Industrial vacuum cleaner EXTRUSION 38
INDUSTRIAL VACUUM CLEANER FOR ALUMINIUM AND PVC CHIPS
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High efficiency
Information
Part Number
Industrial vacuum cleaner EXTRUSION 38
Manufacturer
iVision
Key Features
1 year warranty, Easy operation, High efficiency
Description:
The EXTRUSION 38 litres vacuum cleaner is one of the most compact in the iVision range, it guarantees greater agility in confined spaces. The EXTRUSION 38 litres vacuum cleaner is particularly suited for working in combination with small single-head saws with low production of chips and dust. The three-phase motor that this model features guarantees continued use without any special maintenance.
G. System SpecificationsTechnical Data
Specification
POWER
1,5KW
FREQUENCY
50Hz
SUPPLY VOLTAGE
400V
MAXIMUM NEGATIVE PRESSURE
25mbar
MAXIMUM AIR FLOW RATE
1200m³/h
INLET DIAMETER
100ømm
NUMBER OF INLETS
1
CONTAINER CAPACITY
38Lt
SOUND PRESSURE LEVEL
80dB(A)
DIMENSION HxLxW cm
130*60*63
WEIGHT
85KG
FILTER
Conical Shaft Class M Antistatic
FILTER AREA
0,6m²
TYPE OF FILTER CLEANING STANDARD CONFIGURATION
Vibration
For further information about our range of iVision, or parts available on these products call us on +44 (0) 2380 667 486
