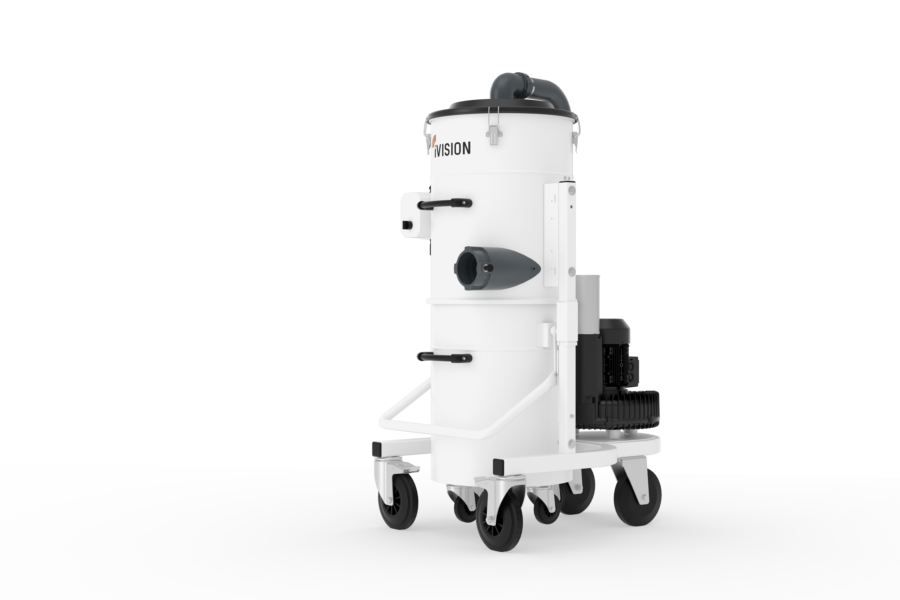

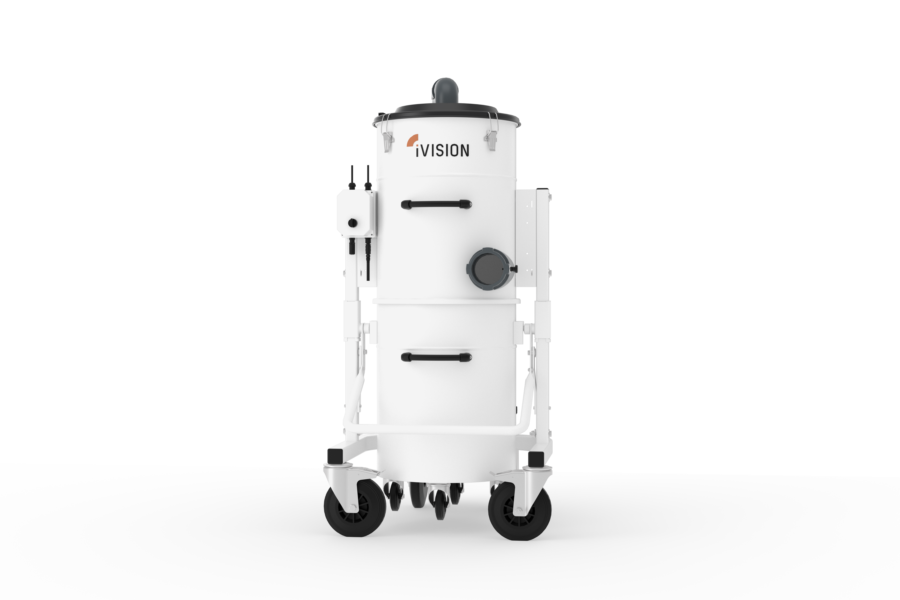

Industrial vacuum cleaner PCB 100
INDUSTRIAL VACUUM CLEANER FOR FIBREGLASS AND ALUMINIUM PRINTED CIRCUITS
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Easy operation

High efficiency

High quality
Information
Part Number
Industrial vacuum cleaner PCB 100
Manufacturer
iVision
Key Features
1 year warranty, Easy operation, High efficiency, High quality
Description:
The PCB 100 litres vacuum cleaner was designed for the needs of medium industrial facilities. This model is equipped with a powerful side channel blower and an advanced filtering system. The vacuum characteristics and air flow rate making the 100-litre PCB ideal for the intensive collection of chips and heavy dust generated by 2 and 4-spindle drilling and milling machines. With this system the waste generated on the drilling or milling machines is effectively extracted during processing, to reduce fouling to a minimum.
Industrial vacuum cleaner PC2H022 Technical SpecificationsTechnical Data
Specification
POWER
2,2KW
FREQUENCY
50Hz
SUPPLY VOLTAGE
400V
MAXIMUM NEGATIVE PRESSURE
200mbar
MAXIMUM AIR FLOW RATE
320m³/h
INLET DIAMETER
100ømm
NUMBER OF INLETS
1 Tangential
CONTAINER CAPACITY
100Lt
SOUND PRESSURE LEVEL
69dB(A)
DIMENSION HxLxW cm
152*104*73
WEIGHT
115KG
FILTER
Conical Shaft Class M + PTFE membrane
FILTER AREA
1m²
Technical Data
Specification
POWER
3KW
FREQUENCY
50Hz
SUPPLY VOLTAGE
400V
MAXIMUM NEGATIVE PRESSURE
270mbar
MAXIMUM AIR FLOW RATE
320m³/h
INLET DIAMETER
100ømm
NUMBER OF INLETS
1 Tangential
CONTAINER CAPACITY
100Lt
SOUND PRESSURE LEVEL
69dB(A)
DIMENSION HxLxW cm
152*104*73
WEIGHT
115KG
FILTER
Conical Shaft Class M + PTFE membrane
FILTER AREA
1m²
Technical Data
Specification
POWER
4KW
FREQUENCY
50Hz
SUPPLY VOLTAGE
400V
MAXIMUM NEGATIVE PRESSURE
290mbar
MAXIMUM AIR FLOW RATE
320m³/h
INLET DIAMETER
100ømm
NUMBER OF INLETS
1 Tangential
CONTAINER CAPACITY
100Lt
SOUND PRESSURE LEVEL
69dB(A)
DIMENSION HxLxW cm
152*104*73
WEIGHT
115KG
FILTER
Conical Shaft Class M + PTFE membrane
FILTER AREA
1m²
