Industrial vacuum cleaner PCB 160
INDUSTRIAL VACUUM CLEANER FOR FIBREGLASS AND ALUMINIUM PRINTED CIRCUITS
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High efficiency
High quality
Information
Part Number
Industrial vacuum cleaner PCB 160
Manufacturer
iVision
Key Features
1 year warranty, Easy operation, High efficiency, High quality
Description:

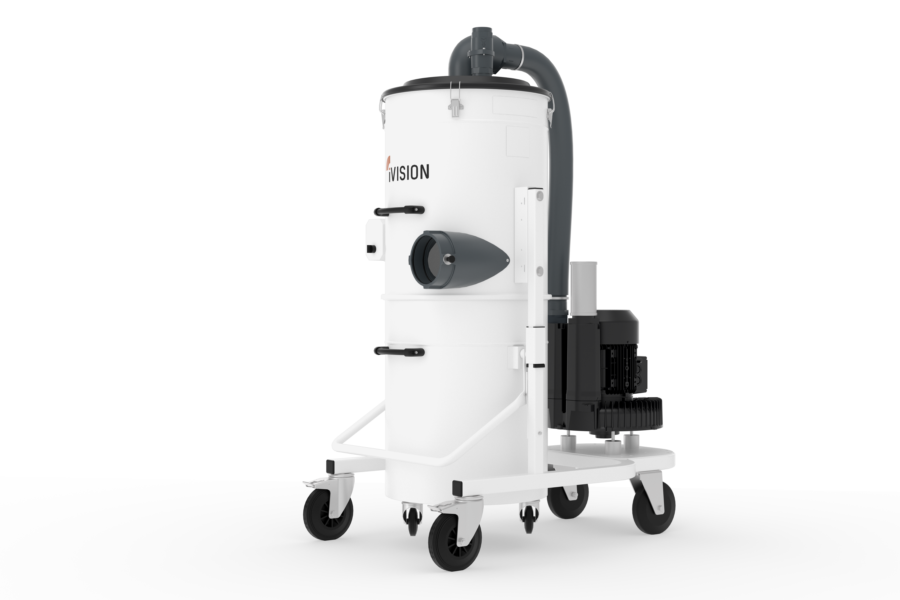

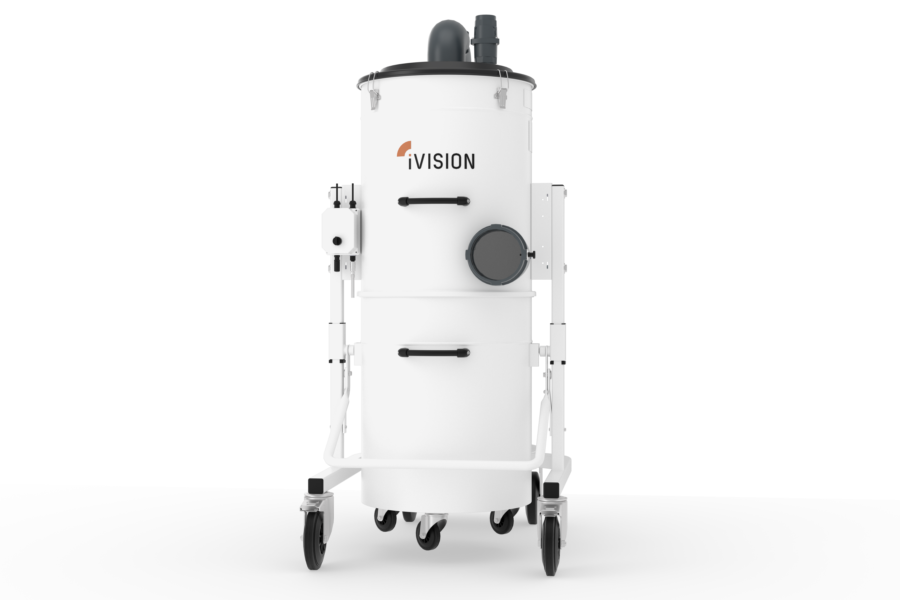

The PCB 160 litres vacuum cleaner is the most powerful wheeled vacuum cleaner model and is used for the collection of chips and dust in large drilling and milling machines (6 spindles and more). iVision has designed a series of specific accessories for the printed circuit industry, such as the touch screen and HMI (Human Machine Interface), ideal for the large systems of PCB manufacturer plants.
Industrial vacuum cleaner PC3H055 Technical SpecificationsTechnical Data
Specification
POWER
5,5KW
FREQUENCY
50Hz
SUPPLY VOLTAGE
400V
MAXIMUM NEGATIVE PRESSURE
300mbar
MAXIMUM AIR FLOW RATE
530m³/h
INLET DIAMETER
160ømm
NUMBER OF INLETS
1 Tangential
CONTAINER CAPACITY
160Lt
SOUND PRESSURE LEVEL
74dB(A)
DIMENSION HxLxW cm
180*126*84
WEIGHT
190KG
FILTER
Conical Shaft Class M + PTFE membrane
FILTER AREA
1,47m²
TYPE OF FILTER CLEANING STANDARD CONFIGURATION
Vibration
Technical Data
Specification
POWER
7,5KW
FREQUENCY
50Hz
SUPPLY VOLTAGE
400V
MAXIMUM NEGATIVE PRESSURE
320mbar
MAXIMUM AIR FLOW RATE
550m³/h
INLET DIAMETER
160ømm
NUMBER OF INLETS
1 Tangential
CONTAINER CAPACITY
160Lt
SOUND PRESSURE LEVEL
80dB(A)
DIMENSION HxLxW cm
180*126*84
WEIGHT
200KG
FILTER
Conical Shaft Class M + PTFE membrane
FILTER AREA
1,47m²
TYPE OF FILTER CLEANING STANDARD CONFIGURATION
Vibration
Technical Data
Specification
POWER
12,5KW
FREQUENCY
50Hz
SUPPLY VOLTAGE
400V
MAXIMUM NEGATIVE PRESSURE
290mbar
MAXIMUM AIR FLOW RATE
1100m³/h
INLET DIAMETER
160ømm
NUMBER OF INLETS
1 Tangential
CONTAINER CAPACITY
160Lt
SOUND PRESSURE LEVEL
80dB(A)
DIMENSION HxLxW cm
180*126*84
WEIGHT
280KG
FILTER
Conical Shaft Class M + PTFE membrane
FILTER AREA
1,47m²
TYPE OF FILTER CLEANING STANDARD CONFIGURATION
Vibration
For further information about our range of iVision, or parts available on these products call us on +44 (0) 2380 667 486
