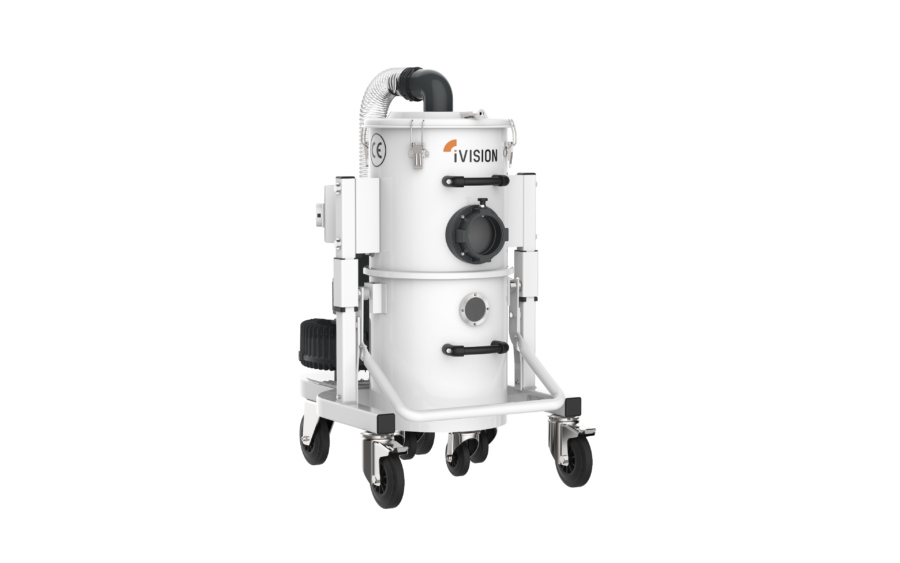

Industrial vacuum cleaner PCB 38
INDUSTRIAL VACUUM CLEANER FOR FIBREGLASS AND ALUMINIUM PRINTED CIRCUITS
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High efficiency
High quality
Information
Part Number
Industrial vacuum cleaner PCB 38
Manufacturer
iVision
Key Features
1 year warranty, Easy operation, High efficiency, High quality
Description:
The PCB 38 litres is a compact, practical and handy vacuum cleaner used mainly for the collection of chips and dust in small one- or two-spindle machines. In combination with the 38-litre PCB vacuum cleaner, iVision has set-up a line of specific accessories for the world of printed circuits.
Industrial vacuum cleaner PC1H022 Technical SpecificationsTechnical Data
Specification
POWER
2,2KW
FREQUENCY
50Hz
SUPPLY VOLTAGE
400V
MAXIMUM NEGATIVE PRESSURE
200mbar
MAXIMUM AIR FLOW RATE
320m³/h
INLET DIAMETER
100ømm
NUMBER OF INLETS
1
CONTAINER CAPACITY
38Lt
SOUND PRESSURE LEVEL
69dB(A)
DIMENSION HxLxW cm
104*90*63
WEIGHT
90KG
FILTER
Conical Shaft Class M + PTFE membrane
FILTER AREA
0.6m²
Technical Data
Specification
POWER
3KW
FREQUENCY
50Hz
SUPPLY VOLTAGE
400V
MAXIMUM NEGATIVE PRESSURE
200mbar
MAXIMUM AIR FLOW RATE
320m³/h
INLET DIAMETER
100ømm
NUMBER OF INLETS
1
CONTAINER CAPACITY
38Lt
SOUND PRESSURE LEVEL
69dB(A)
DIMENSION HxLxW cm
104*90*63
WEIGHT
90KG
FILTER
Conical Shaft Class M + PTFE membrane
FILTER AREA
0,6m²
For further information about our range of iVision, or parts available on these products call us on +44 (0) 2380 667 486
