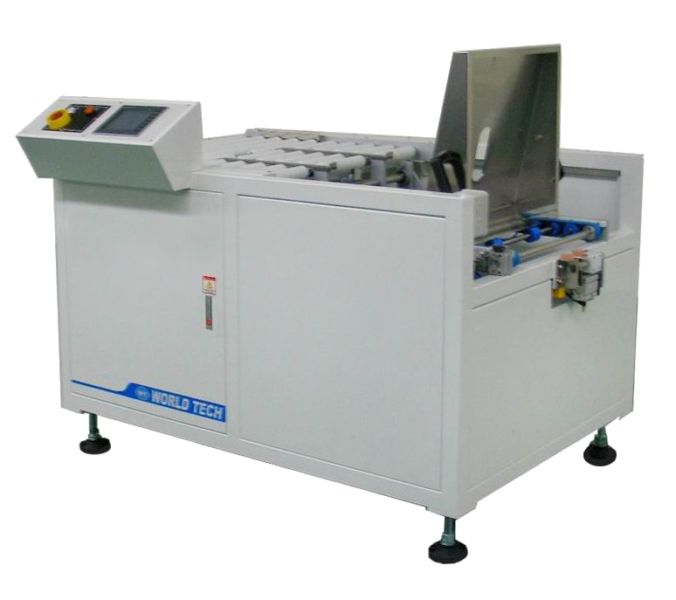

World Tech L-Rack Loader/Unloader
Frame is made by SS41 with powder paint coating.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Can be customised
Easy operation
High accuracy
High efficiency
Information
Machine Model
L-Rack Loader/Unloader
Manufacturer
World Tech
Key Features
1 year warranty, Can be customised, Easy operation, High accuracy, High efficiency
Description:
■ Man-machine interface is adopted for the operation simple.
■ Mining cylinder-type folding board, easy repair.
■ Demand can be based on functional modules with (RACK replacement module can be many groups with full board in order to avoid the stop line). (Optional)
■ SUS304 Grillage mining production, may be placed about 200mm of PCB.
■ Component-type oil-free air compressor, silent, pollution-free exhaust.
Technical Data
Specification
Model
WT-0527
Machine dimensions LxWxH mm
1610*1181*1131
Working Width
720mm
Working Thickness
0.5-3.2mm
Max. panel size
610*610mm
Min. panel size
300*300mm
Speed
8pcs/min
Speed of Conveyor
1-10m/min
Technical Data
Specification
Model
WT-0528
Machine dimensions LxWxH mm
1500*1147*1111
Working Width
720mm
Working Thickness
0.6-3.2mm
Max. panel size
610*610mm
Min. panel size
300*300mm
Speed
8pcs/min
Speed of Conveyor
1-10m/min
For further information about our range of Automation & Handling equipment, or parts available on these products call us on +44 (0) 2380 667 486
