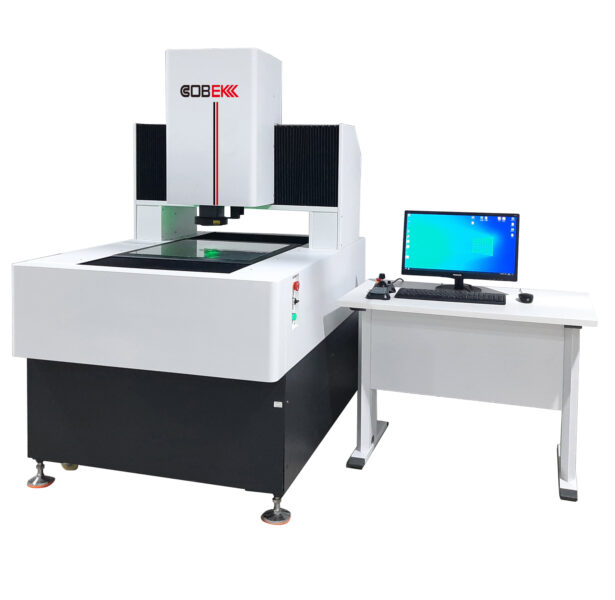

COBEKK LA Series Coordinate Measuring Machines
High-precision CNC measuring instrument with accuracy EXY(1.6+L/200)µm
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Can be customised
Easy operation
High accuracy
High speed
Information
Machine Model
LA Series Coordinate Measuring Machines
Manufacturer
COBEKK
Key Features
1 year warranty, Can be customised, Easy operation, High accuracy, High speed
Description:
A high-precision CNC image measuring instrument with measurement accuracy E1XY(1.6+L/200)µm. Linear motor drive, grating ruler and drive full closed loop microsecond level positioning speed. The Y axis adopts a high rigid fixed bridge type moving table design, and the base adopts a granite plate with strong thermal stability.
Specifications can be customised to suit your requirements, contact us now to discuss your needs.
LA300CNC Technical SpecificationsTechnical Data
Specification
Measure size(XYZ)
300x300x300 mm
XY accuracy
Exy≤1.6+L/200 μm
Technical Data
Specification
Measure size(XYZ)
400x400x300 mm
XY accuracy
Exy≤1.6+L/200 μm
Technical Data
Specification
Measure size(XYZ)
500x500x300mm
XY accuracy
Exy≤1.8+L/200 μm
For further information about our range of Coordinate Measuring Machines, or parts available on these products call us on +44 (0) 2380 667 486
