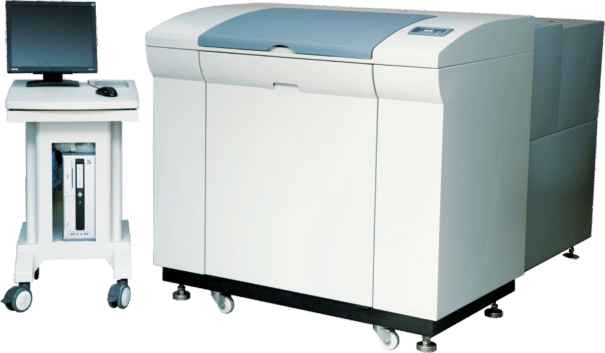

WIDE Laser plotter
Single film capacity laser plotter specially designed for PCB, LCD, precision printing
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Sorry no images at present
Features and benefits
1 year warranty
Can be customised
Easy operation
High efficiency
High quality
Precision excellence
Information
Machine Model
Laser plotter
Manufacturer
WIDE
Key Features
1 year warranty, Can be customised, Easy operation, High efficiency, High quality, Precision excellence
Description:
Featuring an internationally sourced high precision scanning control system, this equipment is easy to operate.
Specifications can be customised to suit your requirements, contact us now to discuss your needs.
WD7008II Laser Plotter Technical SpecificationsTechnical Data
Specification
Film size
660 x 508mm (26 x 20")
Resolution
6000/9000/12000dpi
External drum 32 beams scan
Accuracy
Error ≤±0.01mm
Scan time
4' 12" (6000dpi) 6' 18" (9000dpi) 8' 24" (12000dpi)
Loading
1 piece (auto-loading)
Machine dimensions
1130 x 860 x 1200mm
Machine weight
470kg
Technical Data
Specification
Film size
762 x 610mm (30 x 24")
Resolution
6000/9000/12000dpi
External drum 32 beams scan
Accuracy
Error ≤±0.01mm
Scan time
5' (6000dpi) 7' 50" (9000dpi) 10' (12000dpi)
Loading
1 piece (auto-loading)
Machine dimensions
1350 x 1050 x 1350mm
Machine weight
600kg
Technical Data
Specification
Film size
1219.2 x 914mm (48 x 36")(Customisable)
Resolution
6000/9000/12000dpi
External drum 64 beams scan
Accuracy
Error ≤±0.015mm
Scan time
4' 30" / 3' 45" (610/508) (6000dpi)
Loading
1 piece (auto-loading) (on-line)
Machine dimensions
1710 x 1100 x 1300mm
Machine weight
800kg
