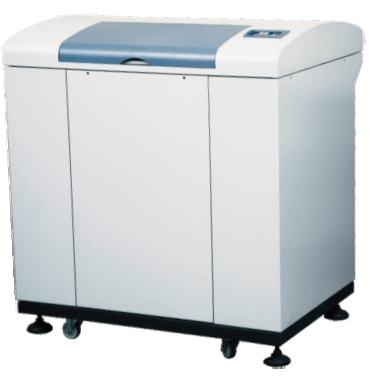

WIDE WD 7008/8068 Semi Automatic Laser Plotter
1 mil uniform width 1 mil line spacing.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Can be customised
Easy operation
High efficiency
High quality
Precision excellence
Information
Machine Model
WD 7008/8068 Semi Automatic Laser Plotter
Manufacturer
WIDE
Key Features
1 year warranty, Can be customised, Easy operation, High efficiency, High quality, Precision excellence
Description:
1、Diversified parameters template management,
2、Unique coordinates calibration algorithm.
3、Imported high precision scanning control system.
4、With the laser constant temperature automatic control system to ensure consistency in line width.
5、1 mil uniform width 1 mil line spacing.
6、Specially designed for PCB、LCD、Precision printing etc
Specifications can be customised to suit your requirements, contact us now to discuss your needs.
WD7088 Laser Plotter Technical SpecificationsTechnical Data
Specification
Film size
660 x 508mm (26 x 20")
Resolution
6000/9000/12000dpi
External drum 32 beams scan
Accuracy
Error ≤±0.01mm
Scan time
4' 12" (6000dpi)
Loading
1 piece hand-loading
Machine dimensions
1350 x 860 x 1350mm
Machine weight
470kg
Technical Data
Specification
Film size
Max: 813 x 660mm (32 x 26")
Resolution
6000/9000/12000dpi
External drum 32 beams scan
Accuracy
Error ≤±0.01mm
Scan time
6' 30" (6000dpi)
Loading
1 piece hand-loading
Machine dimensions
1350 x 930 x 1350mm
Machine weight
600kg
