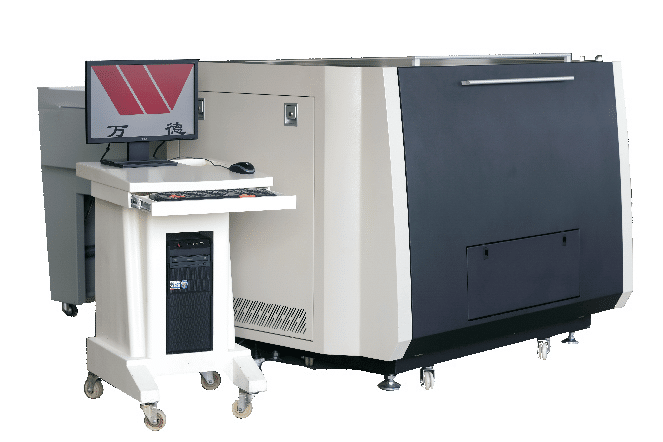

WIDE WD 8330 Fully Automatic Laser Plotter

Specially designed for PCB、LCD、Precision printing etc.

Enquire now
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

1

Features and benefits

1 year warranty

Can be customised

Easy operation

High efficiency

High quality

Precision excellence

Information

Machine Model
WD 8330 Fully Automatic Laser Plotter
Manufacturer
WIDE
Key Features
1 year warranty, Can be customised, Easy operation, High efficiency, High quality, Precision excellence

Description:

1、Diversified parameters template management.

2、Unique coordinates calibration algorithm.

3、Imported high precision scanning control system.

4、With the laser constant temperature automatic control system to ensure consistency in line width.

5、1 mil uniform width 1 mil line spacing.

6、Specially designed for PCB、LCD、Precision printing etc.

7、Automatic up and down with the 50 films.

8、Uniform magnetic levitation motor-driven to ensure that laser imaging

Specifications can be customised to suit your requirements, contact us now to discuss your needs.

G. System Specifications
Technical Data
Specification
Film size
Max:813×660mm(32×26") Min:610×508mm(24×20")
Resolution
9000/12000/18000dpi
External drum 64 beams scan
Accuracy
Error ≤±0.01mm
Scan time
4' 52" (9000dpi)
Loading
50 pieces (auto-loading) (on-line)
Machine dimensions
1750 x 1400 x 1300mm
Machine weight
750kg
