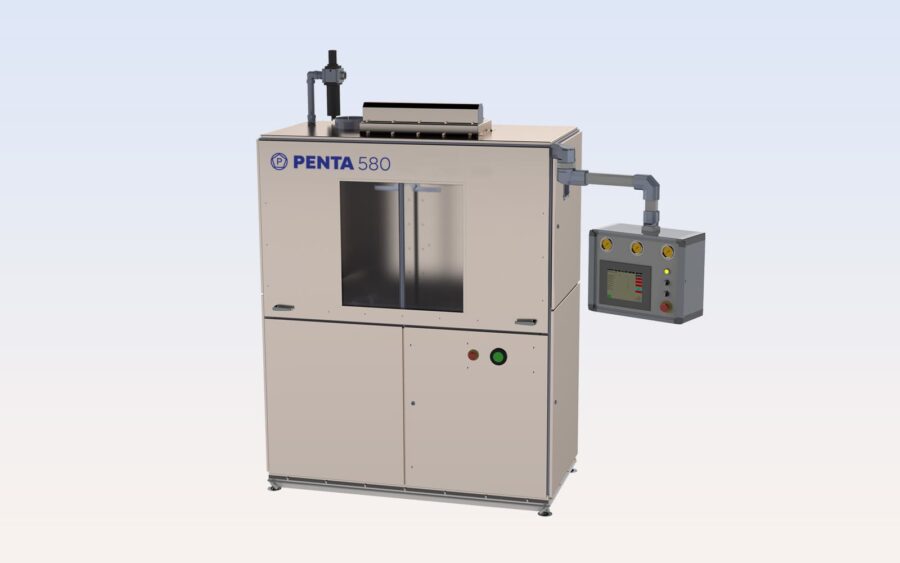

Pentagal Manual Hot Air Leveling System
The printed circuit boards are picked up by a clamp mounted on the Hub Lift.
The titanium clamp grips the PCB via a pneumatic cylinder controlled by a foot switch.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High accuracy
High efficiency
High quality
Information
Machine Model
Manual Hot Air Leveling System
Manufacturer
Pentagal
Key Features
1 year warranty, Easy operation, High accuracy, High efficiency, High quality
Description:
Vertical Hot Air Leveling System equipped with the latest technology. These include the highest quality and durability, inexpensive and easy maintenance, low spare parts costs and user-friendliness. Due to the encapsulation of the tinning chamber, production is almost emission-free. Of course, this Penta system is also suitable for any solder. The touch colour display offers comfortable and easy operation and the high-speed PLC ensures safe and reliable operation of the machine.
PENTA 550 Technical SpecificationsTechnical Data
Specification
Max. board size
700 x 700 x 6 / mm
Solder capacity
365 kg lead solder, 320 kg lead-free solder
Electr. installation
48 kW
Consumption
approx. 26 kW
Width x depth x height
1800 x 900 x 2200 /mm
Weight
950 kg
Technical Data
Specification
Max. board size
800 x 770 x 6 /mm
Solder capacity
420 kg lead solder, 380 kg lead-free solder
Electr. installation
54 kW
Consumption
approx. 30 kW
Width x depth x height
2100 x 1070 x 2360 /mm including terminall
Weight
1000 kg
For further information about our range of HASL equipment, or parts available on these products call us on +44 (0) 2380 667 486
