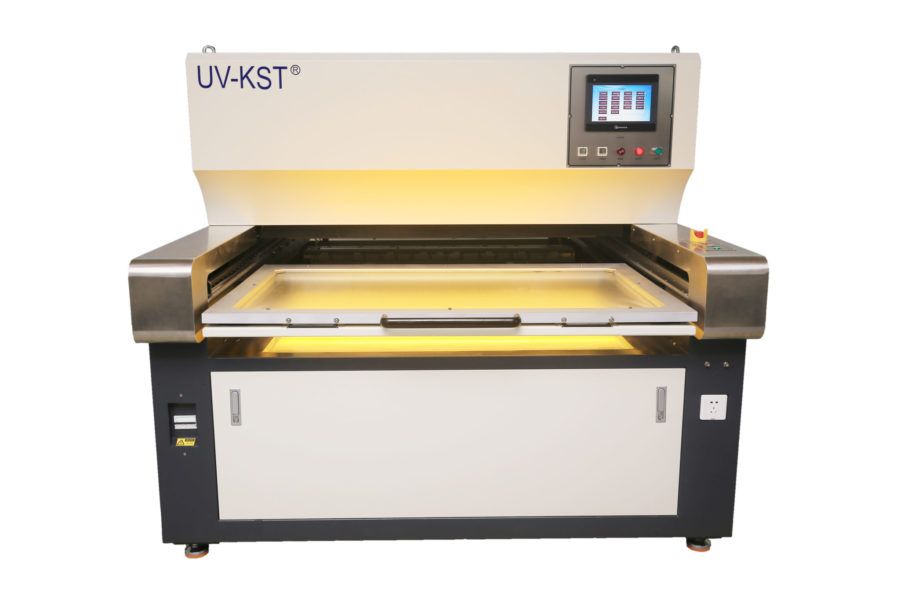

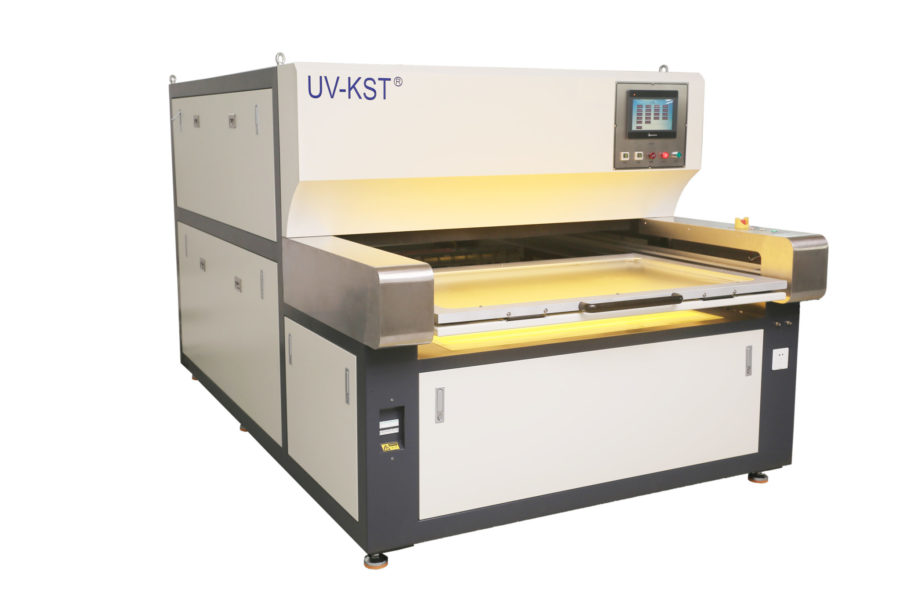

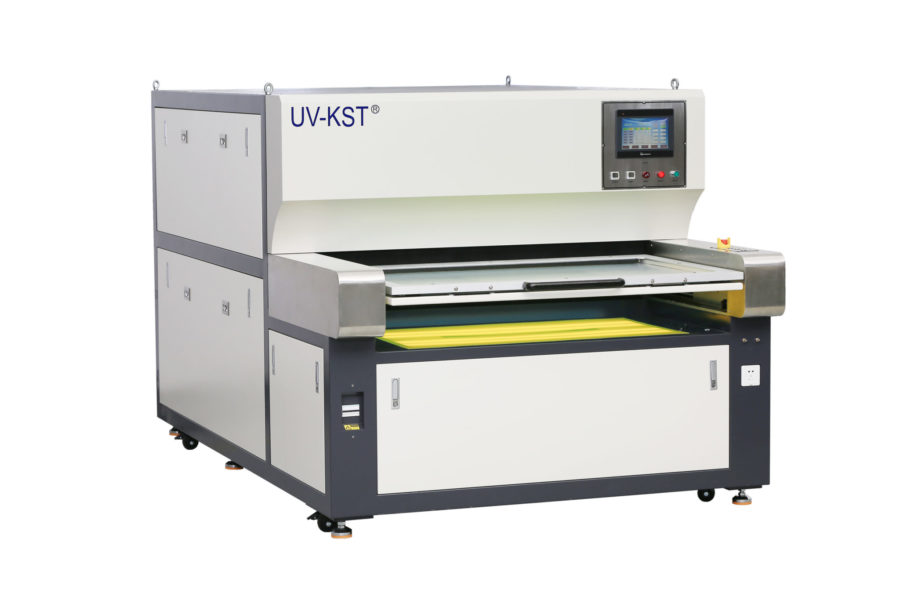

KST Manual LED exposure machine
New generation high speed, high precision, exposure machine, specifically designed for inner and outer layer
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Can be customised
High efficiency
High speed
Low cost
Low power consumption
Precision excellence
Information
Machine Model
Manual LED exposure machine
Manufacturer
KST
Key Features
1 year warranty, Can be customised, High efficiency, High speed, Low cost, Low power consumption, Precision excellence
Description:
The latest LED exposure machine is equipped with UV LED's using a fraction of the energy consumption of the traditional bulbs.
Specifications can be customised to suit your requirements, contact us now to discuss your needs.
KST-E10070-XL Manual LED exposure machine (special for inner/outer layer) Technical SpecificationsTechnical Data
Specification
Type of lighting source
UV LED Parallel Lighting Source
Exposure mode
Double side exposing simultaneously
Resolution
75µm (optical lens version, wet film thickness ≤20µm) /100µm (optical lens version, dry film thickness ≤40µm)Customisable options available
Exposure size
1060 x 700mm
Exposure time
≤10s (main dry film/ink)
Uniformity
≥85% (90% customisable min/max*100%) (using KST LED special energy meter)
Average power
<2.5KW
Optical glass
Mylar/Glass
Machine dimensions
2700 x 1630 x 1750mm (LWH)
Machine weight
1000KG
Technical Data
Specification
Type of lighting source
UV LED Parallel Lighting Source
Exposure mode
Double side exposing simultaneously
Resolution
75µm (optical lens version, wet film thickness ≤20µm) /100µm (optical lens version, dry film thickness ≤40µm)Customisable options available
Exposure size
1250 x 700mm
Exposure time
≤10s (main dry film/ink)
Uniformity
≥85% (90% customisable min/max*100%) (using KST LED special energy meter)
Average power
<3.0KW
Optical glass
Mylar/Glass
Machine dimensions
2700 x 1820 x 1750mm (LWH)
Machine weight
1100KG
Technical Data
Specification
Type of lighting source
UV LED Parallel Lighting Source
Exposure mode
Double side exposing simultaneously
Resolution
75µm (optical lens version, wet film thickness ≤20µm) /100µm (optical lens version, dry film thickness ≤40µm)Customisable options available
Exposure size
1500 x 700mm
Exposure time
≤10s (main ink)
Uniformity
≥85% (90% customisable min/max*100%) (using KST LED special energy meter)
Average power
<3.5KW
Optical glass
Mylar/Glass
Machine dimensions
2700 x 2070 x 1750mm (LWH)
Machine weight
1200KG
For further information about our range of UV Exposure machines, or parts available on these products call us on +44 (0) 2380 667 486
