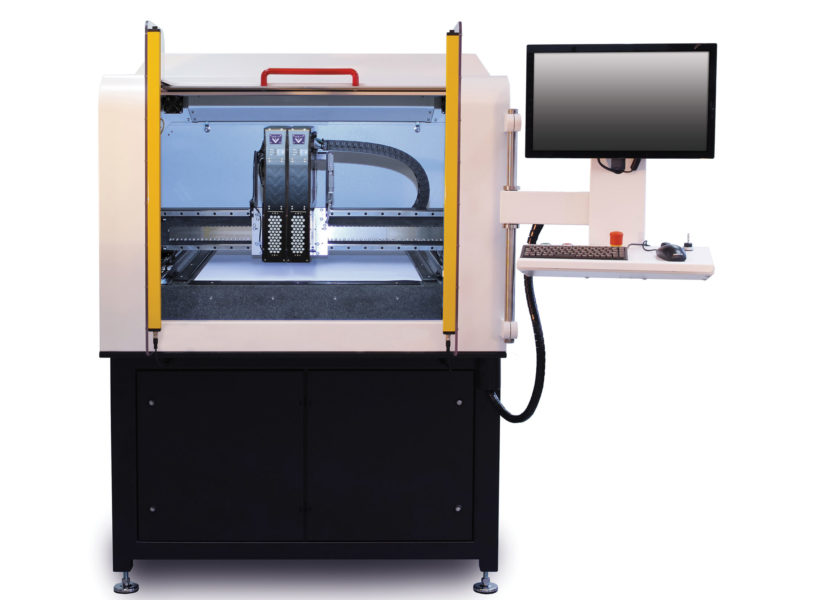

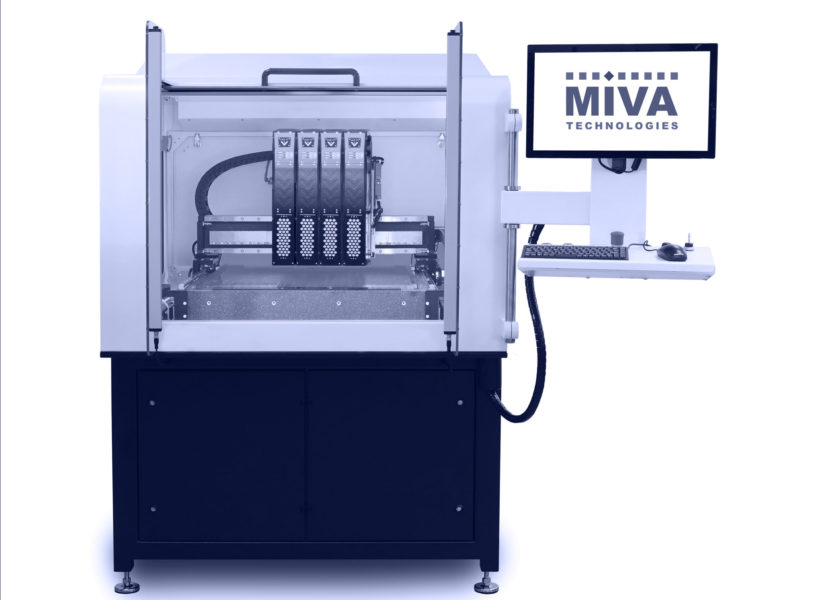

MIVA MIVA 2000L direct imaging equipment
Low cost, high performance direct imaging equipment
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Low operating cost
Quick start up
Upgradeable
Information
Machine Model
MIVA 2000L direct imaging equipment
Manufacturer
MIVA
Key Features
1 year warranty, Low operating cost, Quick start up, Upgradeable
Description:
MIVA 2000L Class Direct Imagers. All MIVA Direct Imagers are granite based, linear motor driven, exposure head upgradeble, closed loop positioning systems and use a dual wavelength, UV semiconductor light source, giving low power consumption with high exposure energy. Investment cost, service costs and running costs are low, performance (speed, resolution, media flexibility) is high.
MIVA 2012L DI Class Technical SpecificationsTechnical Data
Specification
No. of photoheads
1
Max image size
22 x 26" 560 x 660mm
Media sizes from
2 x 2" 50 x 50mm
Time for 18 x 24" (457 x 620mm) LDI resist
120s
Minimum structures
12µm
Technical Data
Specification
No. of photoheads
2
Max image size
24 x 26" 610 x 660mm
Media sizes from
2 x 2" 50 x 50mm
Time for 18 x 24" (457 x 620mm) LDI resist
60s
Minimum structures
12µm
Technical Data
Specification
No. of photoheads
3
Max image size
24 x 26" 510 x 610mm
Media sizes from
2 x 2" 50 x 50mm
Time for 18 x 24" (457 x 620mm) LDI resist
40s
Minimum structures
12µm
Technical Data
Specification
No. of photoheads
4
Max image size
24 x 26" 540 x 610mm
Media sizes from
2 x 2" 50 x 50mm
Time for 18 x 24" (457 x 620mm) LDI resist
30s
Minimum structures
12µm
Technical Data
Specification
No. of photoheads
1
Max image size
22 x 26" 560 x 660mm
Media sizes from
2 x 2" 50 x 50mm
Time for 18 x 24" (457 x 620mm) LDI resist
60s
Minimum structures
25µm
Technical Data
Specification
No. of photoheads
2
Max image size
24 x 26" 610 x 660mm
Media sizes from
2 x 2" 50 x 50mm
Time for 18 x 24" (457 x 620mm) LDI resist
30s
Minimum structures
25µm
For further information about our range of Direct Imaging equipment, or parts available on these products call us on +44 (0) 2380 667 486
