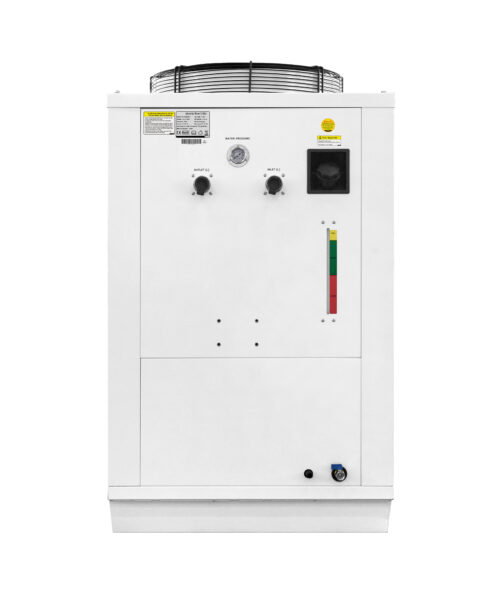

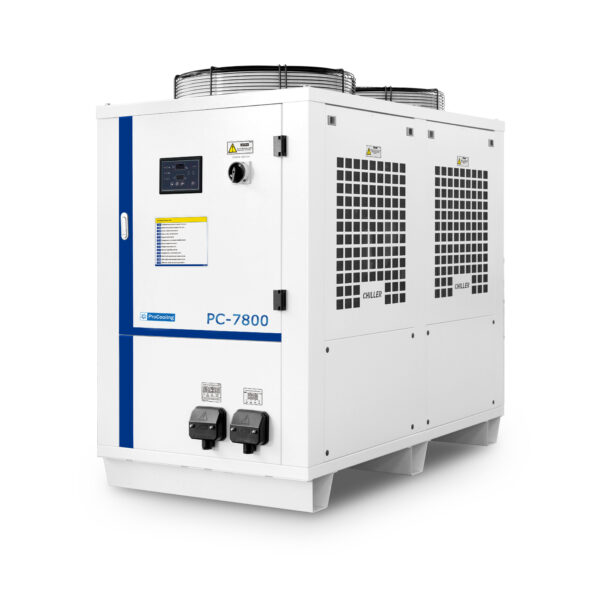

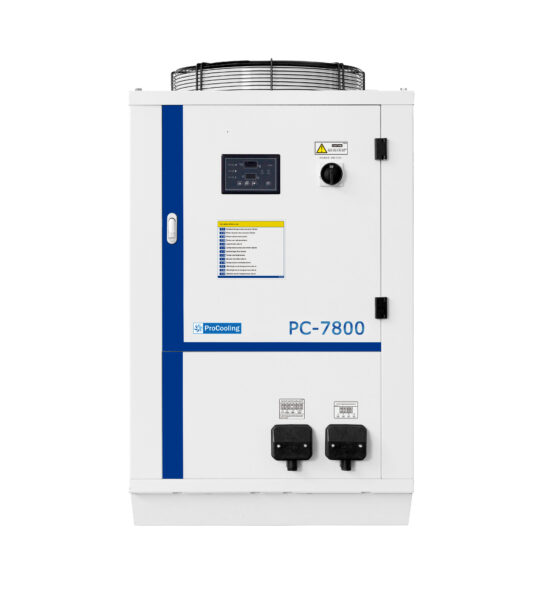

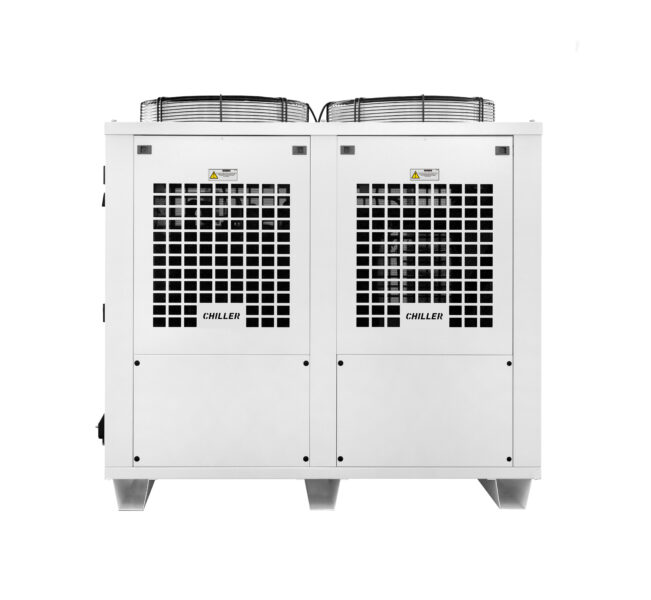

PC-7800 water cooler

Large cooling capacity water chiller PC-7800 allows high water flow rates with low pressure drops and ensures reliable operation even in demanding applications. Multiple alarms are designed to provide full protection. The removable air filters (filter gauzes) allow easy routine maintenance while an RS485 interface is integrated in the temperature controller for PC connection. PC-7800 chiller is an ideal industrial cooling tool for your high-power processing equipment.

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

Can be customised

Easy operation

High accuracy

High efficiency

High quality

Information

Machine Model
PC-7800 water cooler
Key Features
Can be customised, Easy operation, High accuracy, High efficiency, High quality

Description:

PC-7800 can handle cooling requirements in a wide variety of industrial, analytical,medical and laboratory applications. It features proven reliability in 24/7 operation with excellent refrigeration performance, thanks to the high cooling capacity of 26000W and the high performance compressor. The unique evaporator-in-tank configuration has been specifically designed for process cooling applications.

PC-7800ENTY Technical Specifications
Technical Data
Specification
Voltage
AC 3P 380V
Frequency
50Hz
Current
2.1~24.5A
Max. power consumption
14.06kW
Dimension
155x80x135cm (L x W x H)
PC-7800FNTY Technical Specifications
Technical Data
Specification
Voltage
AC 3P 380V
Frequency
60Hz
Current
2.1~22.7A
Max. power consumption
14.2kW
Dimension
155x80x135cm (L x W x H)
View all Water Coolers

For further information about our range of Water Coolers, or parts available on these products call us on +44 (0) 2380 667 486
