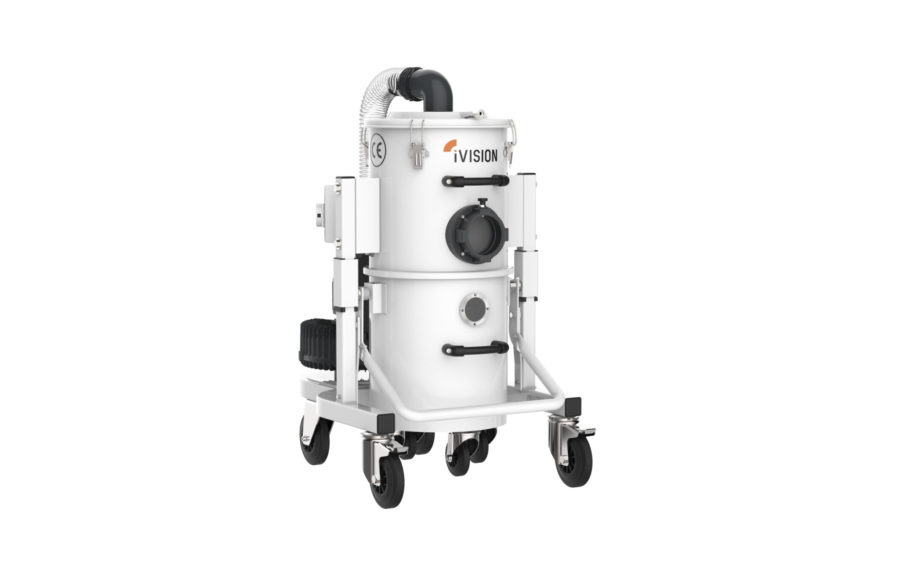

iVision PCB Line iV1 (2.2KW and 3KW)
Vacuum system specifically designed for PCB manufacturing equipment
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
High efficiency
High quality
Latest technology
Information
Machine Model
PCB Line iV1 (2.2KW and 3KW)
Manufacturer
iVision
Key Features
1 year warranty, High efficiency, High quality, Latest technology
Description:
A new range of industrial
vacuum cleaners with side channel turbines,
dedicated to machines that produce printed
circuit boards such as drilling machines,
milling or contouring.
Technical Data
Specification
Frequency
50HZ
Power
2.2KW
Voltage
400V
Water lift max
300mbar
Air flow max
310m³/h
No. of inlet
1
Suction inlet
Ø100mm
Volume
38L
Machine dimensions
104 x 90 x 63cm (HLW)
Machine weight
90kg
Technical Data
Specification
Frequency
50HZ
Power
3KW
Voltage
400V
Water lift max
310mbar
Air flow max
310m³/h
No. of inlet
1
Suction inlet
Ø100mm
Volume
38L
Machine dimensions
104 x 90 x 63cm (HLW)
Machine weight
95kg
For further information about our range of Vacuums, or parts available on these products call us on +44 (0) 2380 667 486
