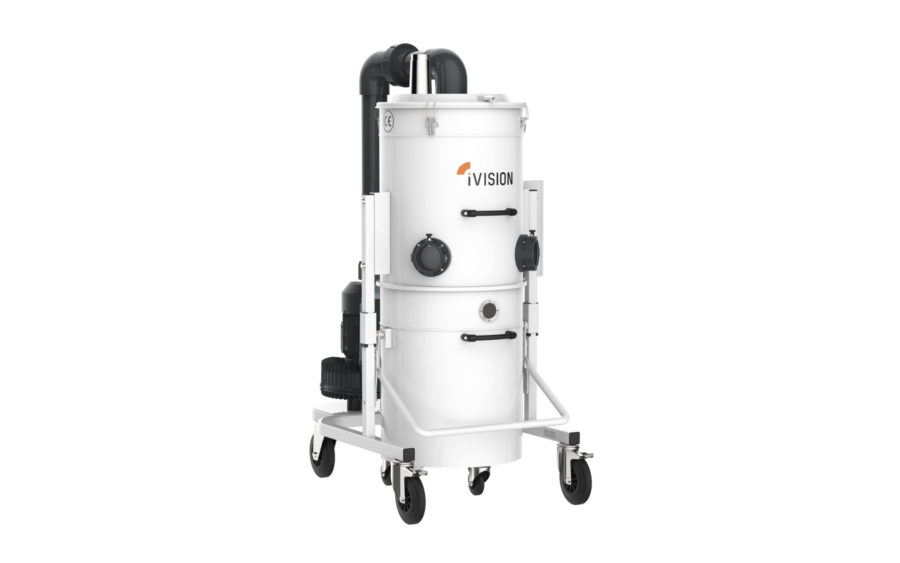

iVision PCB Line iV3 (from 5.5KW)
Vacuum system specifically designed for PCB manufacturing equipment
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
High efficiency
High quality
Latest technology
Information
Machine Model
PCB Line iV3 (from 5.5KW)
Manufacturer
iVision
Key Features
1 year warranty, High efficiency, High quality, Latest technology
Description:
A new range of industrial
vacuum cleaners with side channel turbines,
dedicated to machines that produce printed
circuit boards such as drilling machines,
milling or contouring.
Technical Data
Specification
Frequency
50HZ
Power
5.5KW
Voltage
400V
Water lift max
300mbar
Air flow max
550m³/h
No. of inlet
2
Suction inlet
Ø100mm
Volume
160L
Machine dimensions
180 x 126 x 84cm (HLW)
Machine weight
190kg
Technical Data
Specification
Frequency
50HZ
Power
7.5KW
Voltage
400V
Water lift max
320mbar
Air flow max
550m³/h
No. of inlet
2
Suction inlet
Ø100mm
Volume
160L
Machine dimensions
180 x 126 x 84cm (HLW)
Machine weight
200kg
Technical Data
Specification
Frequency
50HZ
Power
12.5KW
Voltage
400V
Water lift max
300mbar
Air flow max
1100m³/h
No. of inlet
2
Suction inlet
Ø100mm
Volume
160L
Machine dimensions
180 x 126 x 84cm (HLW)
Machine weight
280kg
For further information about our range of Vacuums, or parts available on these products call us on +44 (0) 2380 667 486
