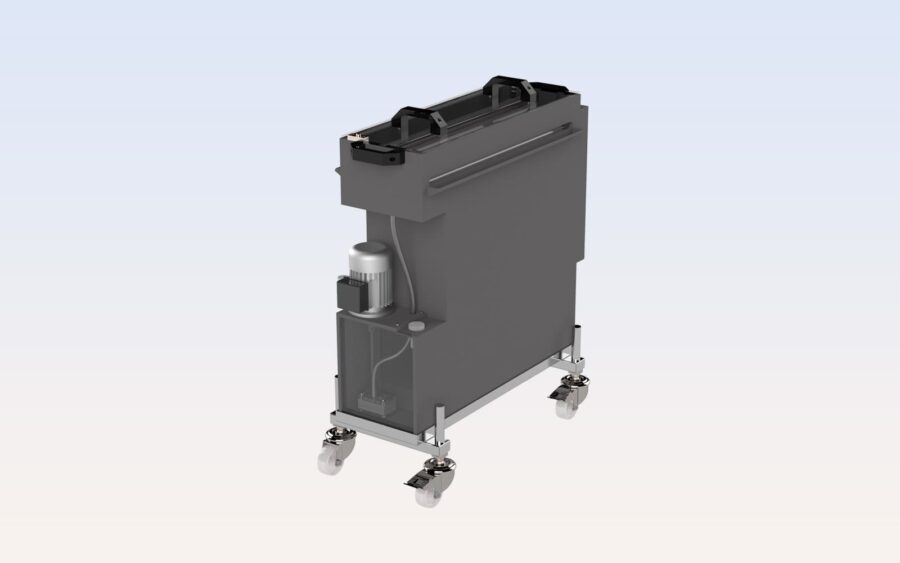

Pentagal PENTA FLUXBOY

The rollers are from a special plastic that is chemically resistant. The flux level is controlled by means of a min/max switch.

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Easy operation

High accuracy

High efficiency

High quality

Information

Machine Model

PENTA FLUXBOY

Manufacturer

Pentagal

Key Features

1 year warranty, Easy operation, High accuracy, High efficiency, High quality

Description:

The fluxboy can be free-standing or integrated into a production line. The body of PENTA fluxboy is made of plastic. The fluxer rollers are driven by a speed-controlled motor that can be set to advance at up to 5 m/min. The pump is made of titanium and Teflon.

G. System Specifications

Technical Data

Specification

Max. Panel size

700 x 700 x 6 / mm

Air pressure

6-8 bar, appr. 280 Nl/cycle

Compressor

14KW

Electrical installation

48KW

Consumption

26KW

Width x depth x height

1800 x 900 x 2200 /mm

Weight

950KG
