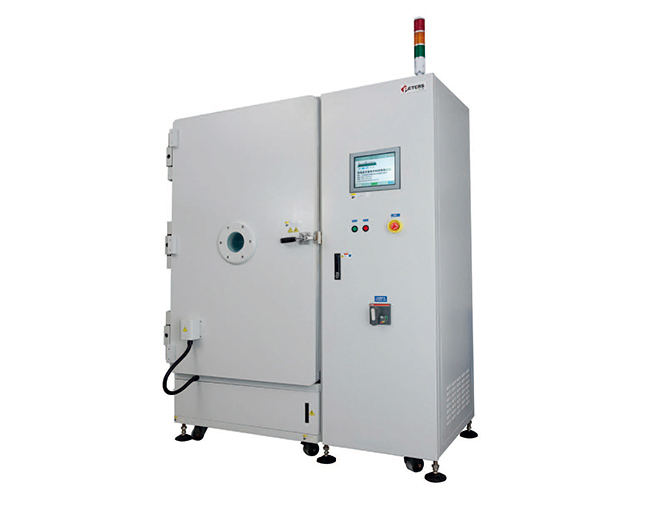

Other Plasma
Designed for FPC surface and blind hole treatment.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
High accuracy
High quality
Low power consumption
Information
Machine Model
Plasma
Manufacturer
Other
Key Features
1 year warranty, High accuracy, High quality, Low power consumption
Description:
Designed for FPC surface and blind hole treatment. Horizontal arrangement is suitable for the demands of the small, thin and soft circuit boards.
G. System SpecificationsTechnical Data
Specification
Electrode effective size
21 x 25" (HD)
Electrode distribution
27 electrodes, horizontal arrangement, 26 reaction zones
Chamber dimensions
790 x 816 x 1405mm (WDH)
Power
10kw @ 40KHz
Machine dimensions
1600 x 1060 x 2385mm (WDH)
Machine weight
1700kg
Vacuum pump dry pump
1060CFM
Vacuum pump airflow
0 ~ 60L/min
For further information about our range of Plasma machines, or parts available on these products call us on +44 (0) 2380 667 486
