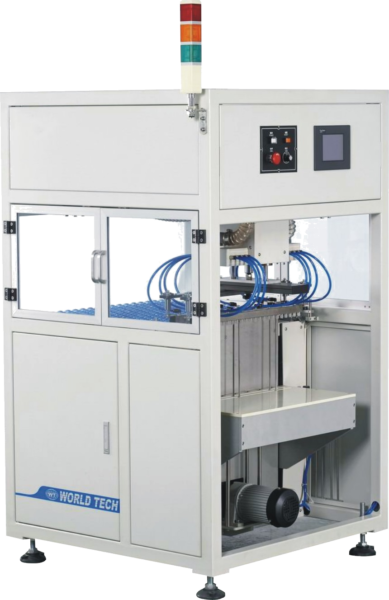

World Tech Routed panel Loader with Table

Frame is made by SS41 with powder paint coating.

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Easy operation

High accuracy

High efficiency

High quality

Information

Machine Model
Routed panel Loader with Table
Manufacturer
World Tech
Key Features
1 year warranty, Easy operation, High accuracy, High efficiency, High quality

Description:

 Suction plate special institutions, in their admission boards,
kite board, the action quickly, and do not harm the surface.
 Stacked plate design of the platform lift height of 250mm (30
minutes feeding time) the width of 35mm, "× 3" plates up to 8
exclusive pieces, put the number of larger panels.
 Used for the transmission belt, quiet silent, non-oil-type air
compressor parts, no exhaust pollution, clean room to avoid
contamination.
 A three-color warning light may be a clear understanding of
equipment.

G. System Specifications
Technical Data
Specification
Model
WT-0417-T
Machine dimensions LxWxH mm
1200*1000*1710
Working Width
720mm
Working Thickness
0.6-3.2mm
Max. panel size
300*300mm
Min. panel size
75*75mm
Speed
6-8pcs/min
Speed of Conveyor
1-10m/min
