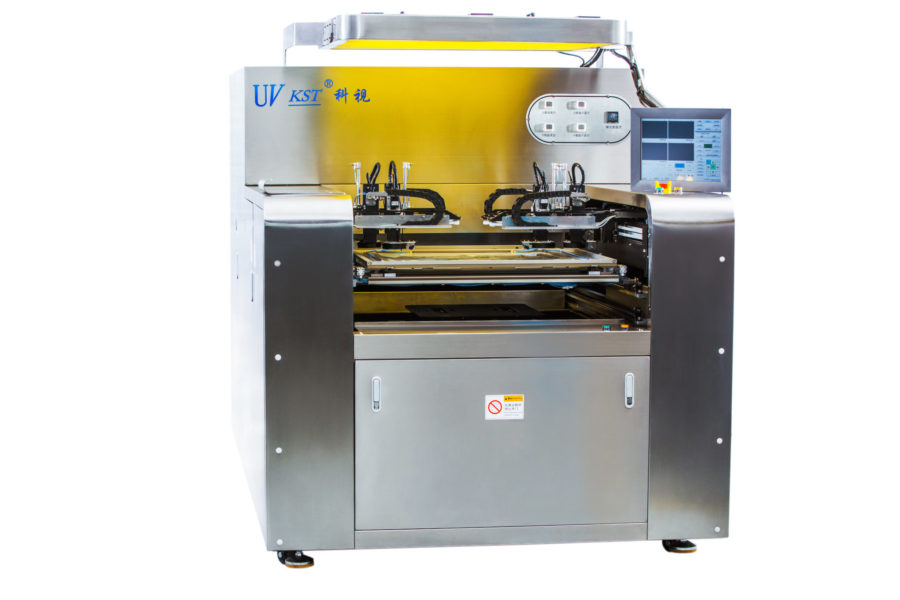

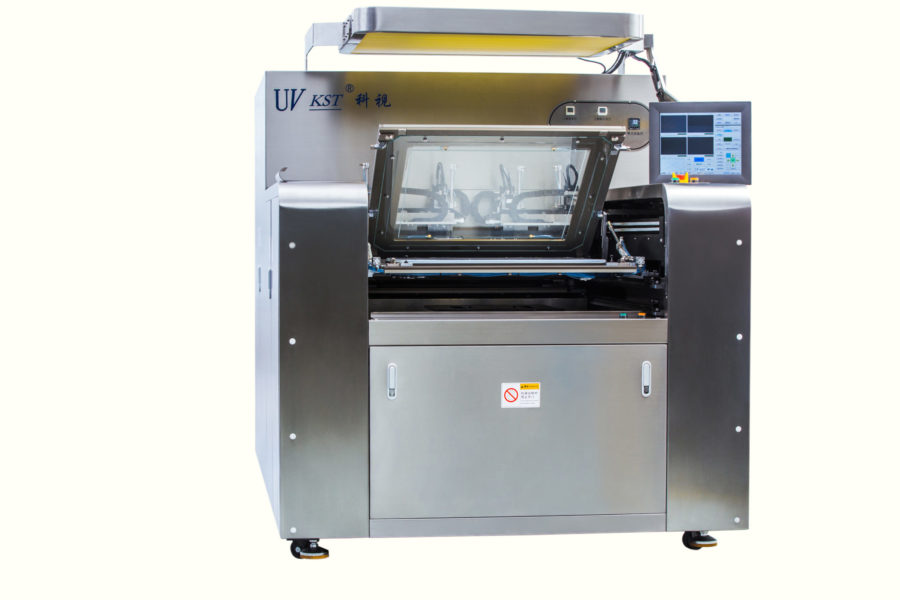

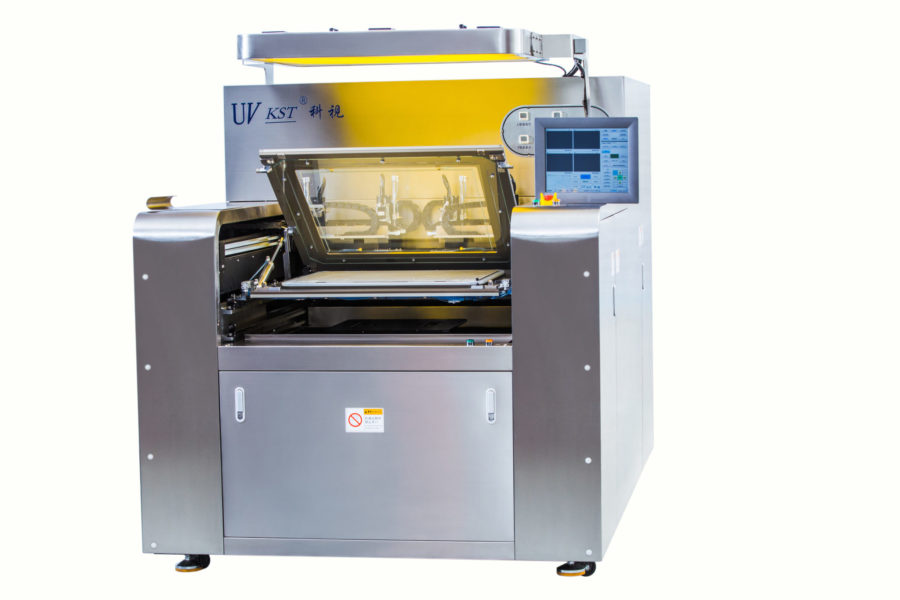

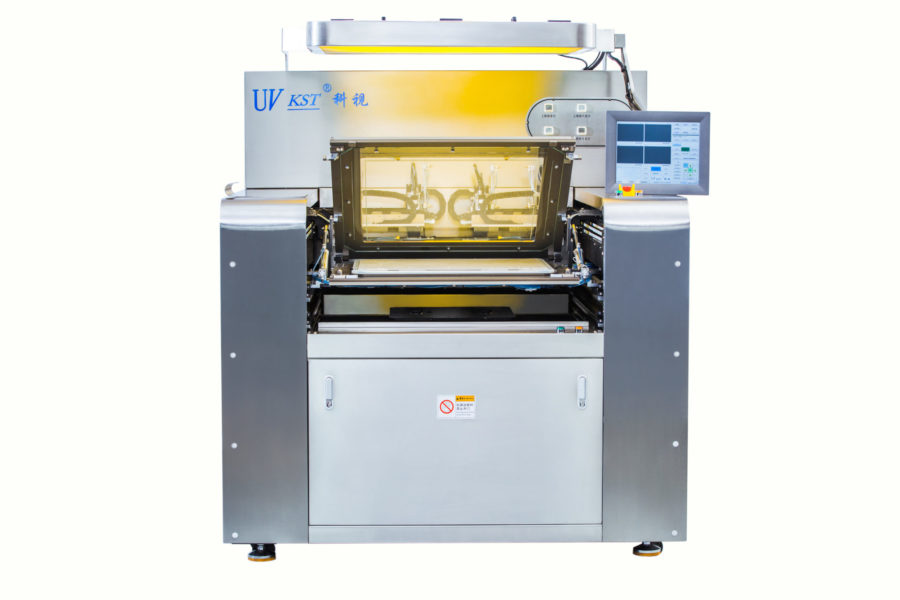

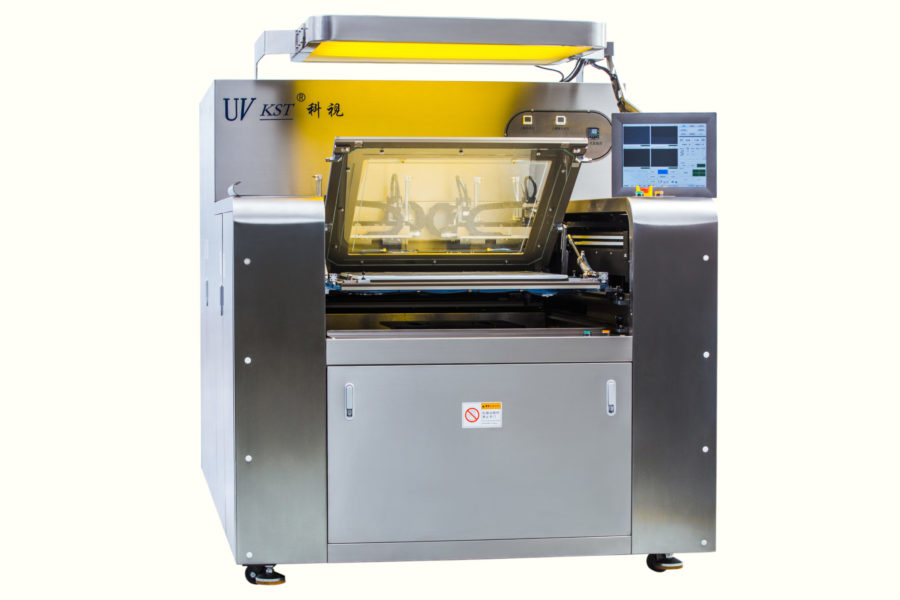

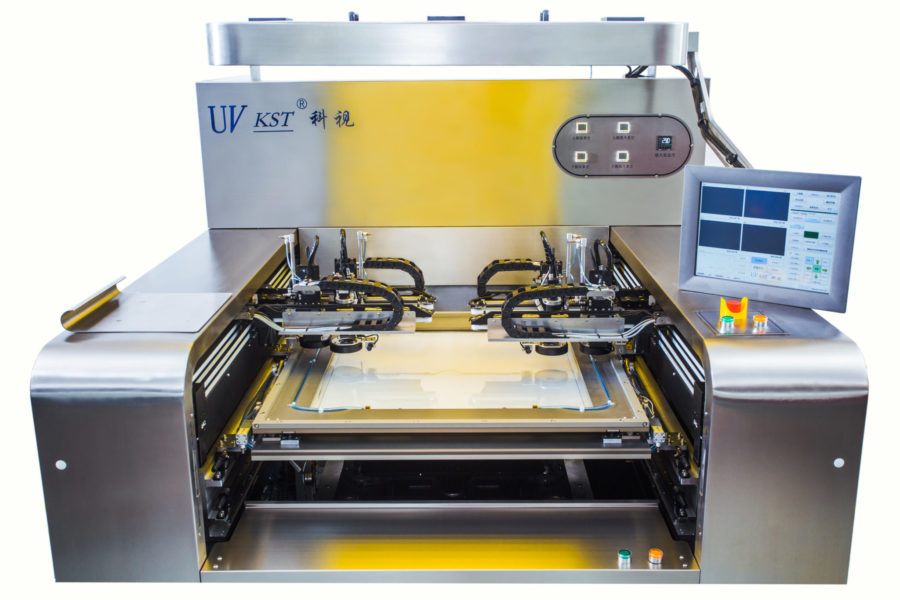

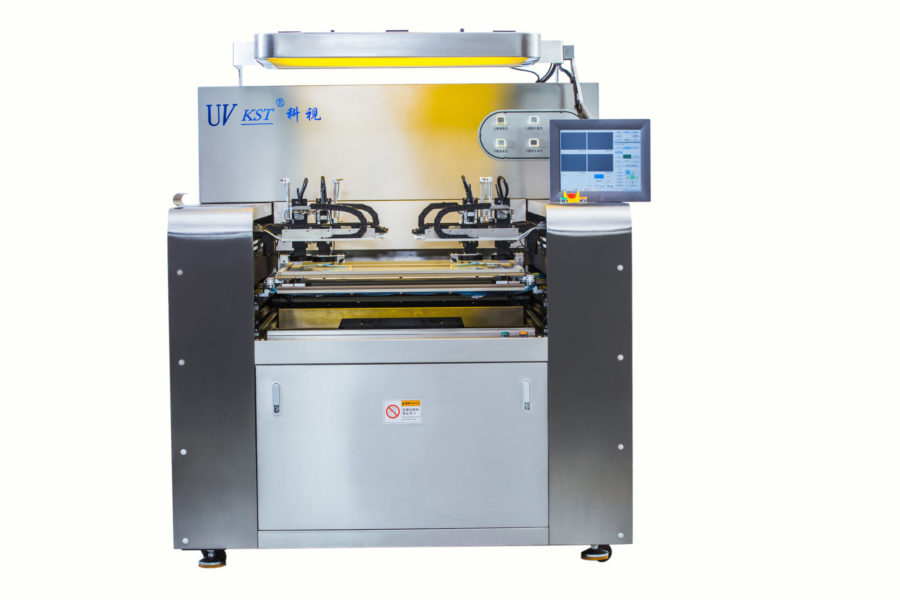

KST Semi automatic LED solder mask exposure system

New generation high precision, high stability, exposure machine

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Can be customised

High efficiency

High stability

Low cost

Low power consumption

Precision excellence

Information

Machine Model

Semi automatic LED solder mask exposure system

Manufacturer

KST

Key Features

1 year warranty, Can be customised, High efficiency, High stability, Low cost, Low power consumption, Precision excellence

Description:

The latest semi-automatic LED exposure machine possesses several patents of invention. This equipment features the world leading optical technology with precise manufacturing. The semi-automatic LED exposure machine combines high speed, high precision and high stability ensuring production efficiency and quality of the PCB.

Specifications can be customised to suit your requirements, contact us now to discuss your needs.

KST-SA6457-FH Semi Automatic LED Solder Mask Exposure machine Technical Specifications

Technical Data

Specification

Panel size

Min 10" x 12"Max 21.5" x 24.5"

Panel thickness

0.1 - 3.2mm (including panel thickness)

Film size

670 x 610mm

Solder mask bridge

75µm (3.0mil)/solder mask opening 3.0mil

Type of lighting source

LED parallel light source

Parallel half angle

≤2°

Energy uniformity

≥85% (using KST LED special energy meter)

Exposure mode

Single side exposing

CCD

4CCD/alignment

Alignment accuracy

±15µm

Frame repeat accuracy

15µm

Production capacity

2.5 - 4sides per minute

Machine dimensions

2780 x 1650 x 1980mm (LWH)

Machine weight

1400kg

KST-SA7262-FH Semi Automatic LED Solder Mask Exposure machine Technical Specifications
