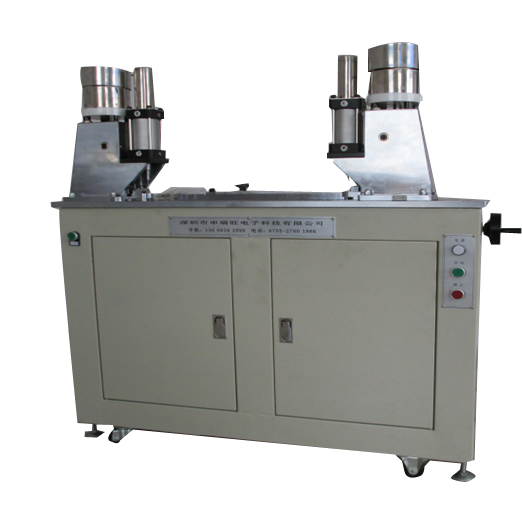

Other SRW860A automatic pinning machine

Equipment used for automatic drill and pinning of stacked panels

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Easy operation

High speed

Precision excellence

Information

Machine Model

SRW860A automatic pinning machine

Manufacturer

Other

Key Features

1 year warranty, Easy operation, High speed, Precision excellence

Description:

Equipment used for automatic drill and pinning of stacked panels. Uses Mitsubishi, Japanese programmable controller (PLC) ensuring performance stability, safety and reliability. Featuring a high speed, high precision low noise drilling spindle.

G. System Specifications

Technical Data

Specification

Main axis rev

24000r/min

Pin size

3.175mm

Min panel size

250 x 250mm

Max panel size

800 x 680mm

Panel thickness

0-10mm

Drilling accuracy

±0.1mm

Machine dimensions

1270 x 580 x 1350mm

Machine weight

220kg
