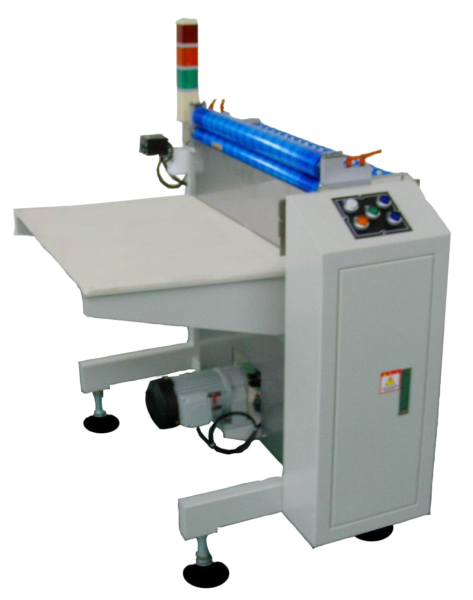

World Tech Stack Unloader
Frame is made by SS41 with powder paint coating.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High accuracy
High efficiency
High quality
Information
Machine Model
Stack Unloader
Manufacturer
World Tech
Key Features
1 year warranty, Easy operation, High accuracy, High efficiency, High quality
Description:
■ Vertical overlapping of the collection, less space, ease of collection after handling circuit boards.
■ Streamlining of the mechanical structure, easy to repair.
■ Automatic control, simple operation, no need to adjust.
■ Trolley can be used with PC board removal.
Technical Data
Specification
Model
WT-0415
Machine dimensions LxWxH mm
750*1070*993
Working Width
710mm
Working Thickness
0.6-3.2mm
Max. panel size
610*610mm
Min. panel size
300*300mm
Speed
8pcs/min
Speed of Conveyor
1-10m/min
