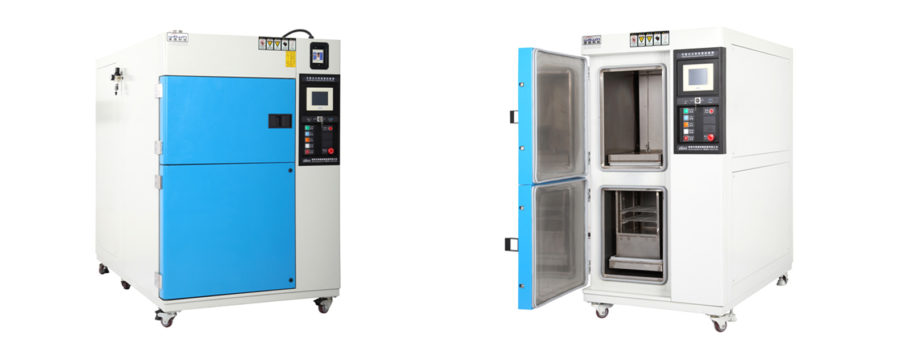

Other Thermal shock chamber

Thermal Shock Chamber be used for testing most commercial products to see how they withstand drastic temperature changes.

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Outstanding reliability

Precision excellence

Information

Machine Model
Thermal shock chamber
Manufacturer
Other
Key Features
1 year warranty, Outstanding reliability, Precision excellence

Description:

A thermal shock chamber will subject a product to the most extreme temperature conditions, instantly. The purpose of testing a product under these circumstances by the thermal shock chamber is to observe changes in the products characteristics and check for failure occurrence of different materials and thermal expansion coefficients. Quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries. Featuring a European sourced refrigeration unit for reliability.

Thermal Shock Chamber Technical Specifications
Technical Data
Specification
Volume size
27L
Interior dimension
300 x 300 x 300mm (WHD)
Exterior dimension
900 x 1670 x 1260mm (WHD)
Cooling system
Water cooling / Air cooling
Temperature range
-70°C ~ 200°C
Temperature
±0.5°C
Humidity range
40 ~ 95% RH
Preheating
200°C
Heating rate
0°C ~ 200°C/30min
Precooling
-70°C
Cooling rate
0°C ~ 70°C/90min
Temperature recovery
within 10 minutes
Test area bearing
50kg
Shelf bearing
20kg
Setting range
Temperature: -100°C ~ 200°C / Time: OHIM ~ 999h / Cycle: 0 ~ 9999
Power supply
AC 220V, 230V, 50/60Hz ; AC380V ±10%, 50/60Hz
Thermal Shock Chamber Technical Specifications
Technical Data
Specification
Volume size
150L
Interior dimension
500 x 600 x 500mm (WHD)
Exterior dimension
1430 x 1900 x 1200mm (WHD)
Cooling system
Water cooling / Air cooling
Temperature range
-70°C ~ 200°C
Temperature
±0.5°C
Humidity range
40 ~ 95% RH
Preheating
200°C
Heating rate
0°C ~ 200°C/30min
Precooling
-70°C
Cooling rate
0°C ~ 70°C/90min
Temperature recovery
within 10 minutes
Test area bearing
50kg
Shelf bearing
20kg
Setting range
Temperature: -100°C ~ 200°C / Time: OHIM ~ 999h / Cycle: 0 ~ 9999
Power supply
AC 220V, 230V, 50/60Hz ; AC380V ±10%, 50/60Hz
