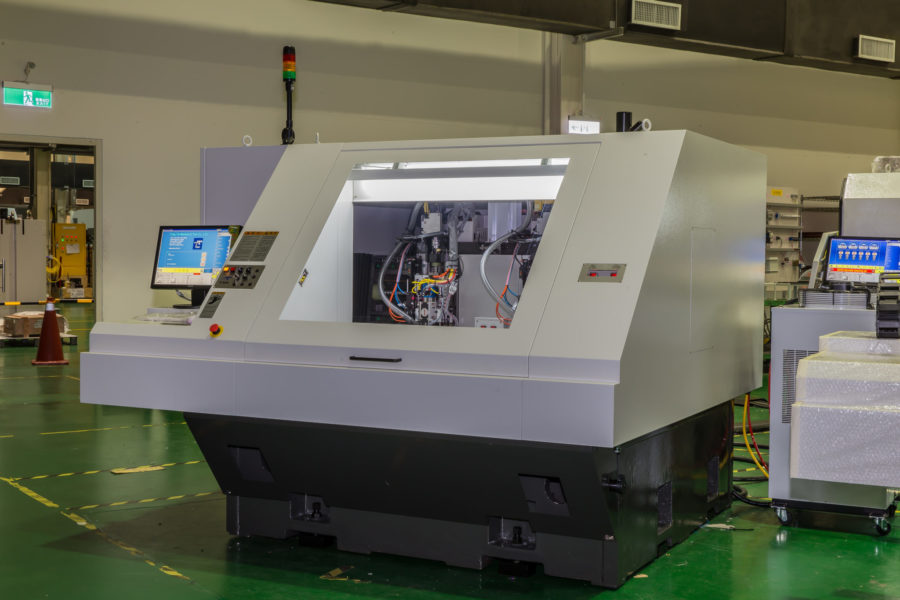

Tongtai Tongtai SD drilling machine
Drilling machine with servo motor
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Can be customised
High speed
Sieb & Meyer control
User friendly
Information
Machine Model
Tongtai SD drilling machine
Manufacturer
Tongtai
Key Features
1 year warranty, Can be customised, High speed, Sieb & Meyer control, User friendly
Description:
High speed PCB drilling machine
Specifications can be customised to suit your requirements, contact us now to discuss your needs.
SD108 Drilling Machine Technical SpecificationsTechnical Data
Specification
Spindle
1
Working Range
660 x 760mm
Max Spindle Speed
80,000rpm
ATC Capacity
200pcs
Dia. Of Drill Range
0.75 ~ 3.175mm
Positioning Accuracy
± 0.005mm
Repeatability
± 0.0025mm
Positioning Pin Dia.
3.175mm
Controller
Sieb & Meyer
Machine Size
1924 x 2230 x 1688mm (LWH)
Machine Weight
3600kg
Technical Data
Specification
Spindle
2
Working Range
550 x 690mm
Max Spindle Speed
160,000rpm
ATC Capacity
300pcs
Dia. Of Drill Range
0.1mm ~ 6.35mm
Positioning Accuracy
± 0.005mm
Repeatability
± 0.0025mm
Positioning Pin Dia.
3.175mm
Controller
Sieb & Meyer
Machine Size
2324 x 2180 x 1688mm (LWH)
Machine Weight
4000kg
Technical Data
Specification
Spindle
6
Working Range
550 x 690mm
Max Spindle Speed
160,000rpm
ATC Capacity
400pcs
Dia. Of Drill Range
0.1mm ~ 6.35mm
Positioning Accuracy
± 0.005mm
Repeatability
± 0.0025mm
Positioning Pin Dia.
3.175mm
Controller
Sieb & Meyer
Machine Size
4574 x 2180 x 1688mm (LWH)
Machine Weight
10,050kg
For further information about our range of Drilling & Routing machines, or parts available on these products call us on +44 (0) 2380 667 486
