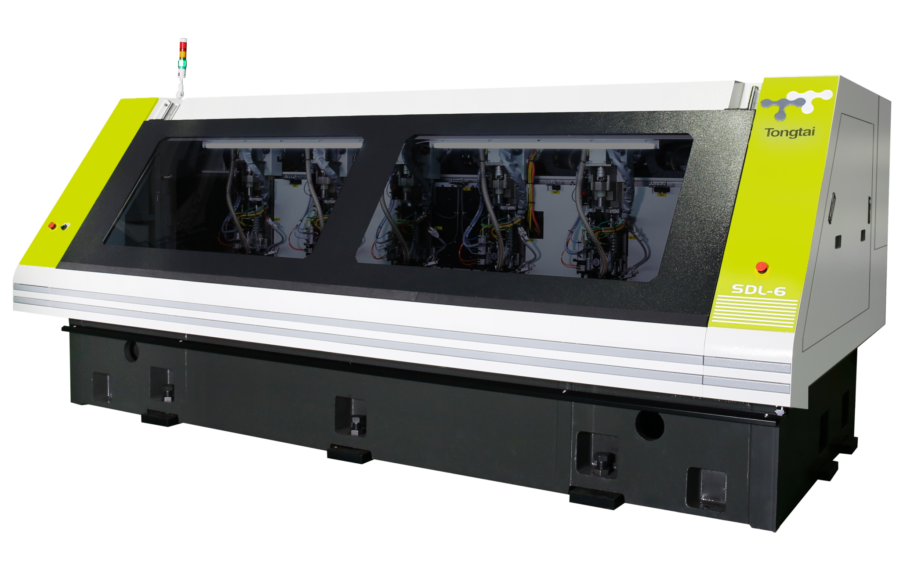

Tongtai Tongtai SDL drilling machine
Drilling machine with linear motor
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Can be customised
High speed
Precision excellence
Sieb & Meyer control
User friendly
Information
Machine Model
Tongtai SDL drilling machine
Manufacturer
Tongtai
Key Features
1 year warranty, Can be customised, High speed, Precision excellence, Sieb & Meyer control, User friendly
Description:
New design concept for high-speed, high precision, high efficiency and easy maintenance. Features laser tool measurement, real time broken tool detection, high accuracy depth control and peck drilling and quick drilling functions.
Specifications can be customised to suit your requirements, contact us now to discuss your needs.
G. System SpecificationsTechnical Data
Specification
Spindle
6
Working Range
550 x 690mm
Max Spindle Speed
160,000rpm (options available)
ATC Capacity
300pcs
Dia. Of Drill Range
0.1 ~ 6.35mm
Positioning Accuracy
± 0.005mm
Repeatability
± 0.0025mm
Positioning Pin Dia.
3.175mm
Controller
Sieb & Meyer
Machine Size
4321 x 2180 x 1767mm (LWH)
Machine Weight
10000kg
For further information about our range of Drilling & Routing machines, or parts available on these products call us on +44 (0) 2380 667 486
