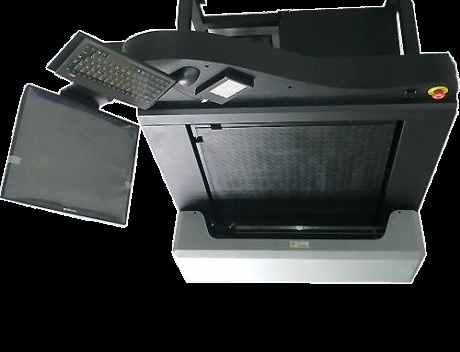

Other Unicorn Verification System
Verification system used following AOI inspection
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Camera auto alignment
Fast start up
High productivity
Information
Machine Model
Unicorn Verification System
Manufacturer
Other
Key Features
1 year warranty, Camera auto alignment, Fast start up, High productivity
Description:
The unicorn verification system offers two point automatic graphic positioning preventing defects being missed due to misplacement. Able to read many brands of AOI defects. Conveniently establish defect statistics and automatically monitor production process.
Unicorn Verification Tester Technical SpecificationsTechnical Data
Specification
Max board size
25 x 28" (635 x 711mm)
Max inspection area
25 x 27" (635 x 685mm)
Board thickness
0 - 300mil
Transition time between defects
Max: 1.2sNormal: 0.6s
Zoom magnification range
17x - 76x
Field of view
2 - 6mm
Light source
2 individual LED
Feature measurement
Down to 0.1mil (2.5 micron)
Machine dimensions
1150 x 1150 x 1250mm (LWH)
Machine weight
420kg
Technical Data
Specification
Max board size
25 x 28" (635 x 711mm)
Max inspection area
25 x 27" (635 x 685mm)
Board thickness
0 - 300mil
Transition time between defects
Max: 1.2sNormal: 0.6s
Zoom magnification range
35x - 120x
Field of view
2 - 6mm
Light source
Coaxial light compensation lighting system
Feature measurement
Down to 0.1mil (2.5 micron)
Machine dimensions
1150 x 1150 x 1250mm (LWH)
Machine weight
420kg
For further information about our range of Inspection equipment, or parts available on these products call us on +44 (0) 2380 667 486
