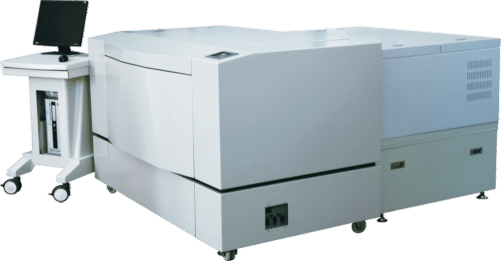

WIDE WD 1320 Laser Image-setter
Advertisement、ceramic printing industries、semiconductor devices industry.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High accuracy
High efficiency
Information
Machine Model
WD 1320 Laser Image-setter
Manufacturer
WIDE
Key Features
1 year warranty, Easy operation, High accuracy, High efficiency
Description:
1、Imported fine main parts、smooth、stable and delicate dot net on the film.
2、With its automatic laser control system and high processing Speed which is
the highest of its kind(processing the same film size).
G. System SpecificationsTechnical Data
Specification
Film size
Max:1320×914mm(52×36") Min:914×760mm(36×30")
Resolution
3000dpi
External drum 64 beams scan
Accuracy
Error ≤±0.01mm
Scan time
5'38"（3000dpi）
Loading
Auto-loading, on-line (bright room operation)
Machine dimensions
1710 x 1100 x 1300mm
Machine weight
800KG
