WIDE WD 9008 Fully Automatic Laser Plotter
1 mil uniform width 1 mil line spacing.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High efficiency
High quality
Information
Machine Model

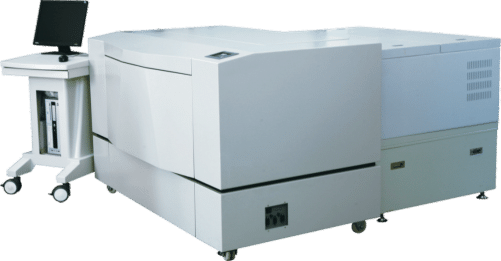

WD 9008 Fully Automatic Laser Plotter
Manufacturer
WIDE
Key Features
1 year warranty, Easy operation, High efficiency, High quality
Description:
1、Diversified parameters template management.
2、Unique coordinates calibration algorithm.
3、Imported high precision scanning control system.
4、With the laser constant temperature automatic control system to ensure consistency in line width.
5、1 mil uniform width 1 mil line spacing.
6、Specially designed for PCB、LCD、Precision printing etc
G. System SpecificationsTechnical Data
Specification
Film size
Max:1320×914mm(52×36"）
Resolution
6000/9000/12000dpi
External drum 64 beams scan
Accuracy
Error≤±0.015mm
Scan time
6'45"(6000dpi)
Loading
30 m fi lm rol l,Auto-loading、on-l ine.
Machine dimensions
1710 x 1100 x 1300mm
Machine weight
800KG
