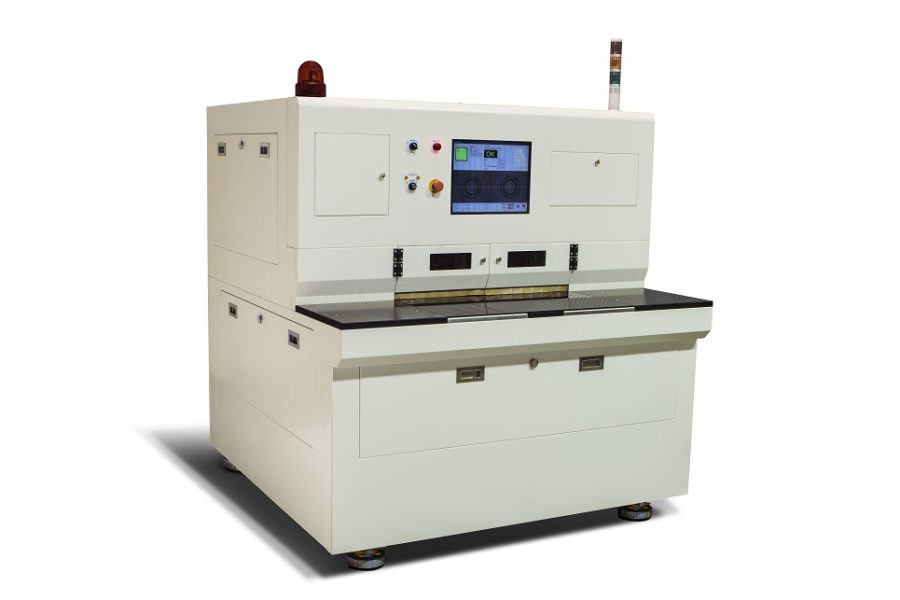

Abcon XD800 X-Ray Drilling Machine
XD800 Dual-spindle multi-target 2-D compensation drilling machine
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
High productivity
Latest technology
Precision excellence
Information
Machine Model
XD800 X-Ray Drilling Machine
Manufacturer
Abcon
Key Features
1 year warranty, High productivity, Latest technology, Precision excellence
Description:
XD 800 dual axis x-ray target drilling system using the most advanced X Ray target
drilling technologies to achieve high productivity and high precision multi-target
2-D compensated drilling requirements.
Technical Data
Specification
Drill hole dia.
2.0mm ~ 6.0mm (3.175mm collet chuck)
Panel thickness
0.1 ~ 8.0mm (10mm optional)
Min. panel size
320 x 220mm
Max. panel size
780 x 620mm
Drill accuracy
±10µm (Mark centre drill)±15µm (One-dimension compensation)±20µm (4-point compensation)
Spinde speed
0 ~ 40,000rpm
X Ray Tube
50kV, 1.0mA (max)
Machine dimensions
2460 x 1610 x 1690mm (DWH)
Machine weight
2800kg
View this product's full specifications >
For further information about our range of Drilling & Routing machines, or parts available on these products call us on +44 (0) 2380 667 486
