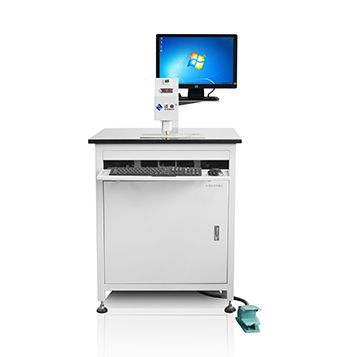

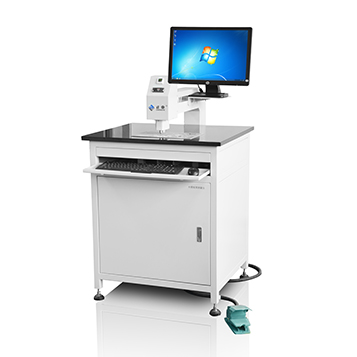

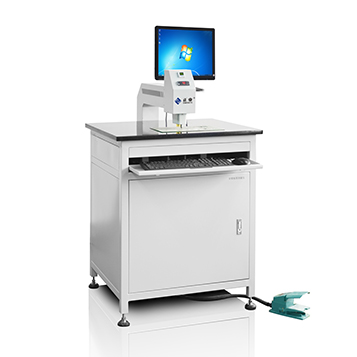

Technic CB21 Long Arm Board Thickness measurement
For precision measurement of copper clad laminate, the thickness of PCB and other boards.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
Outstanding reliability
Information
Machine Model
CB21 Long Arm Board Thickness measurement
Manufacturer
Technic
Key Features
1 year warranty, Easy operation, Outstanding reliability
Description:
For precision measurement of copper clad laminate, the thickness of PCB and other boards. Digital display reading three decimal places and equipped with foot switch for ease of operation.
G. System SpecificationsTechnical Data
Specification
Thickness testing range
0 ~ 12mm
Depth
530mm
Min. measurement area
3 x 3mm
Max. measurement area
3000 x 1060mm
Testing accuracy
±0.003mm
Sensor resolution
0.0001mm
Machine dimensions
800 x 882 x 1150mm (WDH)
Machine weight
110kg
For further information about our range of Laboratory equipment, or parts available on these products call us on +44 (0) 2380 667 486
