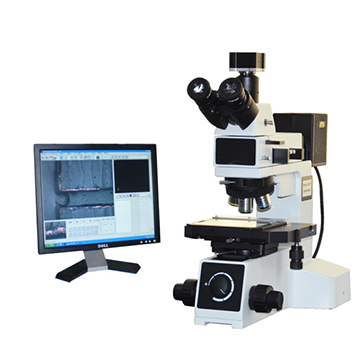

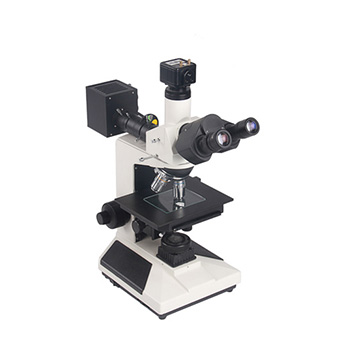

Technic Metallographic Microscope JX22, JX23

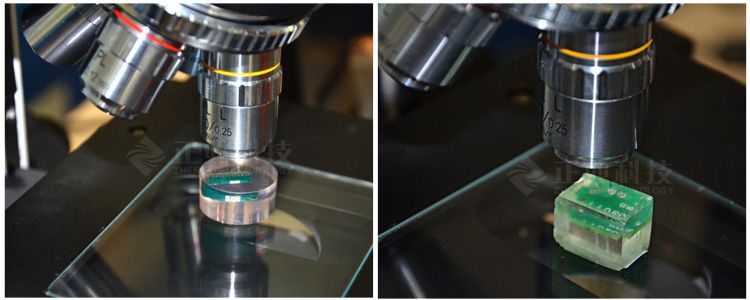

Microscope for the measurement and analysis of small objects like IC components and microsections.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Custom software options
Outstanding reliability
Information
Machine Model
Metallographic Microscope JX22, JX23
Manufacturer
Technic
Key Features
1 year warranty, Custom software options, Outstanding reliability
Description:
Metallographic microscope available with customisable software. User friendly making it easy to achieve accurate measurement and analysis of length, area, radius, axis, angle and other related dimensions.
Ability to take and store still images and measurements.
Technical Data
Specification
Main body
Upright
Optional magnification
50X ~ 600X
Electronic magnification
90X ~ 1150X

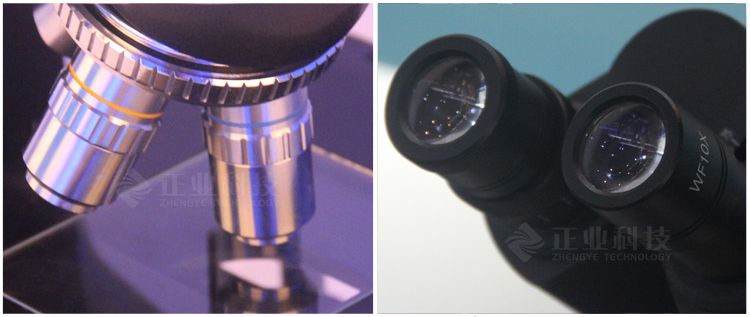

Eye lens (wide view)
10X
Field lens (achromatic)
5X, 10X, 40X, 60X
CCD camera
300 megapixel
Accuracy
±0.0006mm
Technical Data
Specification
Main body
Upright
Optional magnification
50X ~ 500X
Electronic magnification
90X ~ 900X
Eye lens (wide view)
10X
Field lens (achromatic)
5X, 10X, 20X, 50X
CCD camera
300 megapixel
Accuracy
±0.0006mm
