Other GAM620R Automatic turnover for depanelling machine
Turnover equipment for depanelling machine
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Automatic
Easy operation
High speed
Information
Machine Model
GAM620R Automatic turnover for depanelling machine
Manufacturer
Other
Key Features
1 year warranty, Automatic, Easy operation, High speed
Description:

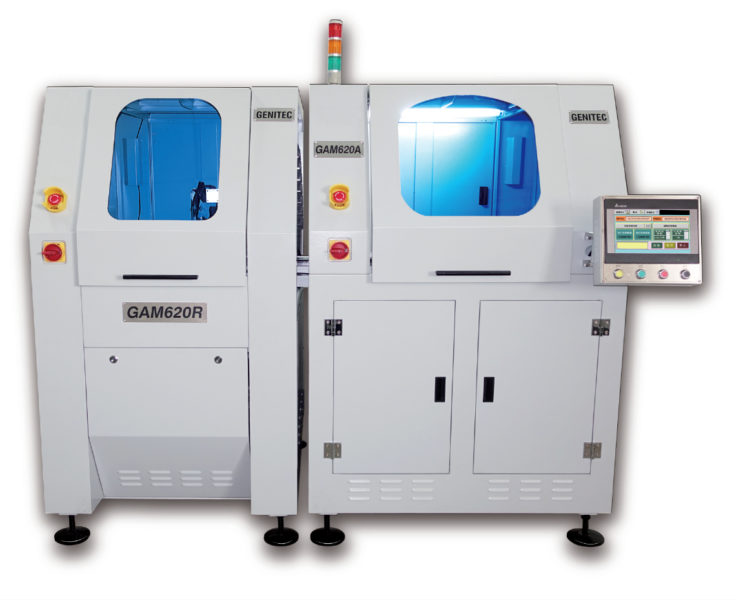

GAM620R (auto turnover) can be connected between GAM330AT (auto seperator) and GAM620A (auto unloader) for full automation.
G. System SpecificationsTechnical Data
Specification
Suitable board size
350 x 300mm
Loading direction
Left to right
Input/output method
Vacuum absorption and transfer
No. of absorption mold
1
Max transferring speed
800mm/min
Repeatable transfer precision
±0.05mm
Machine dimensions
990 x 1115 x 1650mm (WDH)
Machine weight
330kg
For further information about our range of Drilling & Routing machines, or parts available on these products call us on +44 (0) 2380 667 486
