Unicomp AX7900 Economic X-Ray Inspection Equipment
X-Ray inspection equipment
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High resolution
Outstanding reliability
Information
Machine Model
AX7900 Economic X-Ray Inspection Equipment
Manufacturer
Unicomp
Key Features
1 year warranty, Easy operation, High resolution, Outstanding reliability
Description:

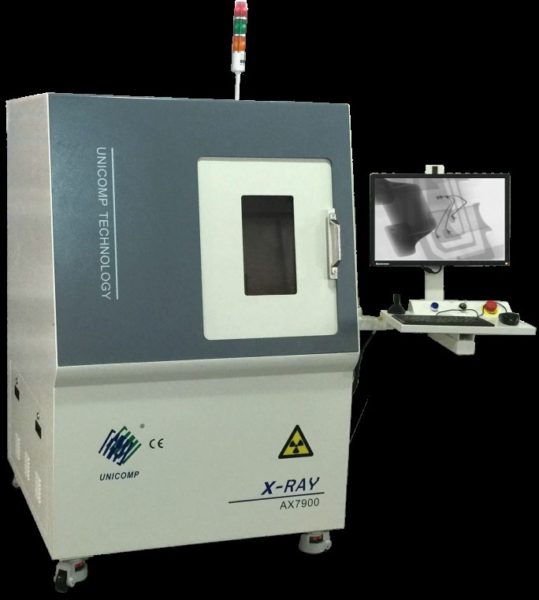

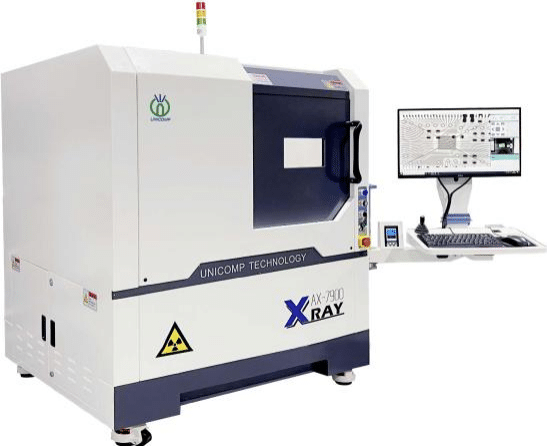

The AX7900 machine is equipped with a 90KV 5μm X-ray tube, FPD Detector. Built with a Multi-function workstation, convenient target point positioning system and XY programming for multiple image inspection routines.
G. System SpecificationsTechnical Data
Specification
X-Ray tube max. voltage, type
90kV, closed
X-Ray tube power consumption
8W
X-Ray tube focal spot size
5µm
X-Ray tube motion range (up and down)
140mm
X-Ray tube magnification
360X
Detector type
FPD
Detector resolution
101 LP/cm
Effective area
58 x 54mm
Detector motion range (up and down)
300mm
Max. loading area
440 x 400mm
Max. inspection area
420 x 380mm
Max. loading weight
5kg
Machine dimensions
1100 x 1060 x 1500mm (WDH)
Machine weight
1000kg
For further information about our range of Inspection equipment, or parts available on these products call us on +44 (0) 2380 667 486
