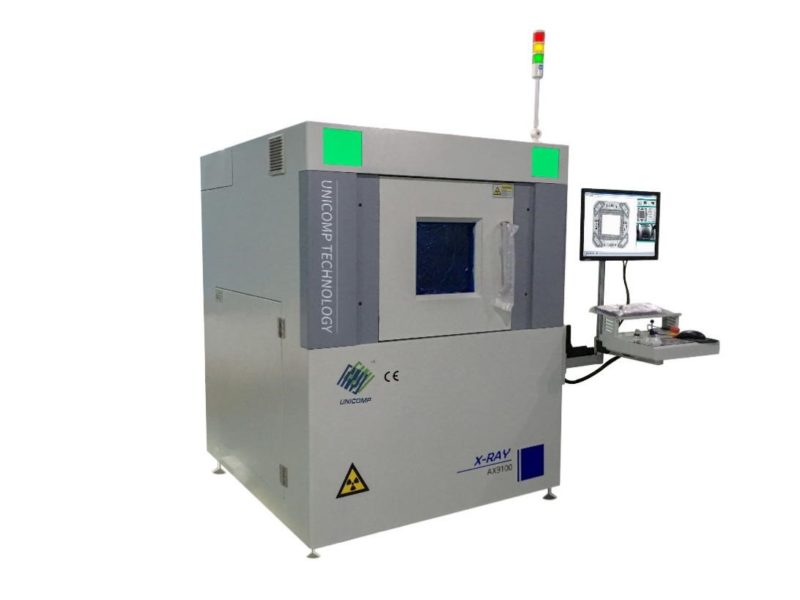

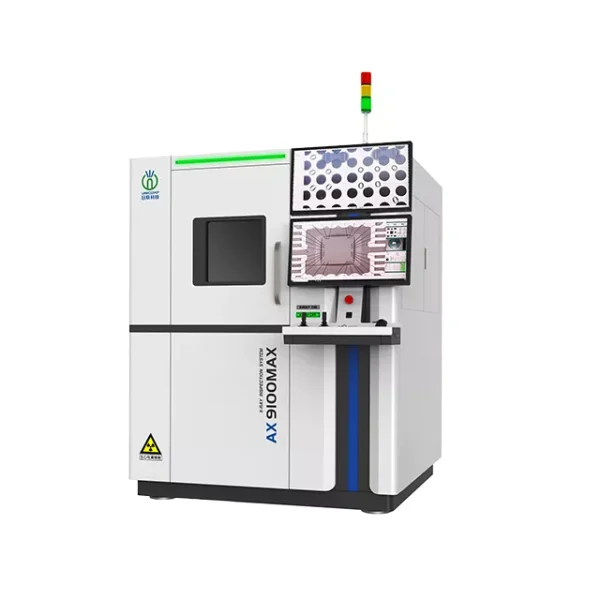

Unicomp AX9100 Semicon X-Ray Inspection Equipment
User friendly and reliable AX9100 Semicon x-ray inspection machine
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
High resolution
High speed
Outstanding reliability
Information
Machine Model
AX9100 Semicon X-Ray Inspection Equipment
Manufacturer
Unicomp
Key Features
1 year warranty, High resolution, High speed, Outstanding reliability
Description:
The AX9100 machine features a 90-130KV 5μm X-Ray tube and high speed and high resolution FPD. Operator friendly with a one-button operation and 2.5D image display. Off-line programming function and navigation mode detection.
G. System SpecificationsTechnical Data
Specification
X-Ray tube max. voltage, type
130kV (110kV optional), closed
X-Ray tube power consumption
40W (25W)
X-Ray tube focal spot size
3µm
X-Ray tube magnification
1600X
Detector type
FPD
Detector resolution
101 LP/cm
Effective area
116.4 x 145.7mm

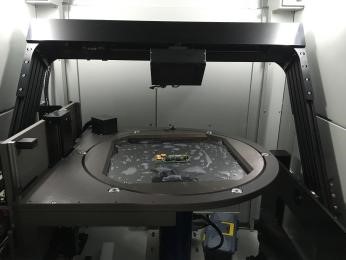

Max. loading area
φ570mm
Max. inspection area
450 x 450mm
Max. loading weight
10kg
Motion range (up and down)
200mm
Table tilting angle
±55° tilting and 360° rotation
Machine dimensions
1450 x 1500 x 1850mm (WDH)
Machine weight
1900kg
