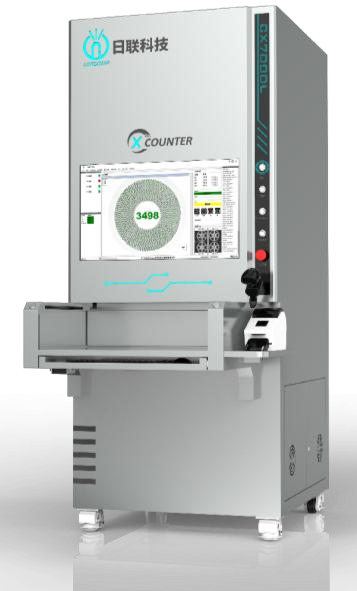

Unicomp CX7000L X-Ray SMD Counter
The CX7000L machine is mainly used for the rapid counting of the production of reel materials.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High accuracy
High speed
Information
Machine Model
CX7000L X-Ray SMD Counter
Manufacturer
Unicomp
Key Features
1 year warranty, Easy operation, High accuracy, High speed
Description:

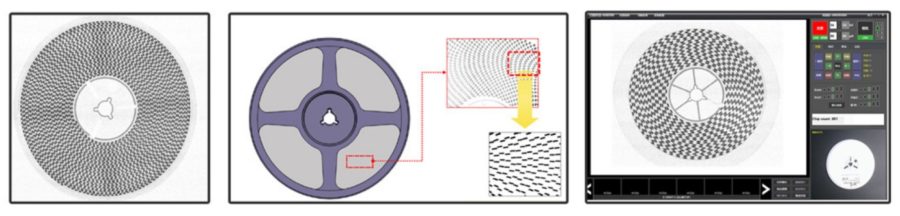

The CX7000L full automatic x-ray inspection machine is mainly used for the rapid counting of the production of reel materials including all the resistance-type materials and IC materials. With open-tube technology this model offers low-cost maintenance as well as a small footprint
G. System SpecificationsTechnical Data
Specification
X-Ray tube max. voltage, type
80kV
X-Ray tube max. current
700µA
Spot size
0.03mm
Detector max. scan size
430 x 430mm
Inspection Tape & Real Size
7”~17”, Height ≤80mm
Effective Inspection Area
430*430mm
Power consumption
700W
Inspection min. component
01005
Machine dimensions
870(W)×1410(D)×1960(H)mm
Machine weight
740kg
