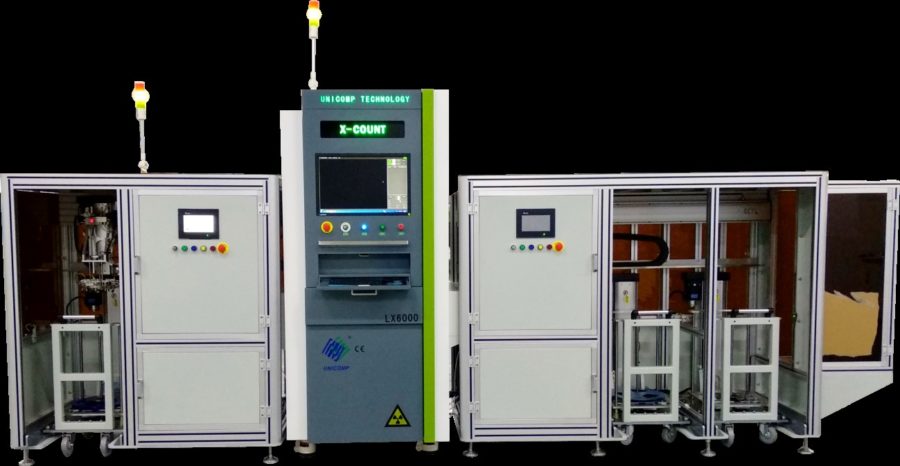

Unicomp LX6000 In Line X-Ray Inspection Equipment
The LX6000 machine is designed specially for incoming inspection and inventory management.
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Easy operation
High accuracy
High speed
Information
Machine Model
LX6000 In Line X-Ray Inspection Equipment
Manufacturer
Unicomp
Key Features
1 year warranty, Easy operation, High accuracy, High speed
Description:

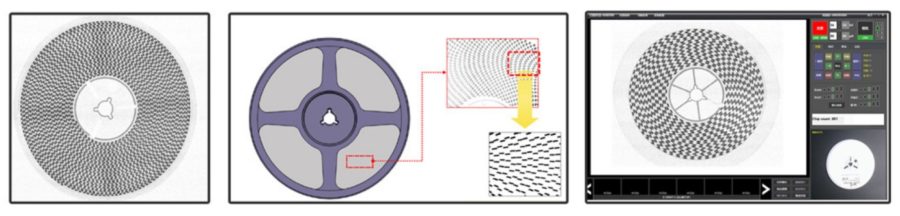

The LX6000 machine is designed specially for incoming inspection and inventory management. With high speed (15-25S/Reel) and highly accurate chip counting (inspection accuracy >99.8%) and user friendly one-button operation.
G. System SpecificationsTechnical Data
Specification
X-Ray tube max. voltage, type
100kV
X-Ray tube max. current
3.5mA
X-Ray tube focal spot size
0.4mm
Detector max. scan width
500mm
Detector pixel pitch
54µm ~ 100 µm
Tunnel size
450 x 80mm (WH)
Power consumption
2.5kW
Max. inspection speed
0.1m/s
Max. inspection real size
17"
Detected reels size
φ30mm - φ450mm less than 50mm thickness tray
Scan height
10mm ~ 60mm
Inspection min. component
01005
Machine dimensions
5500 x 1000 x 2100mm
Machine weight
2000kg
For further information about our range of Inspection equipment, or parts available on these products call us on +44 (0) 2380 667 486
