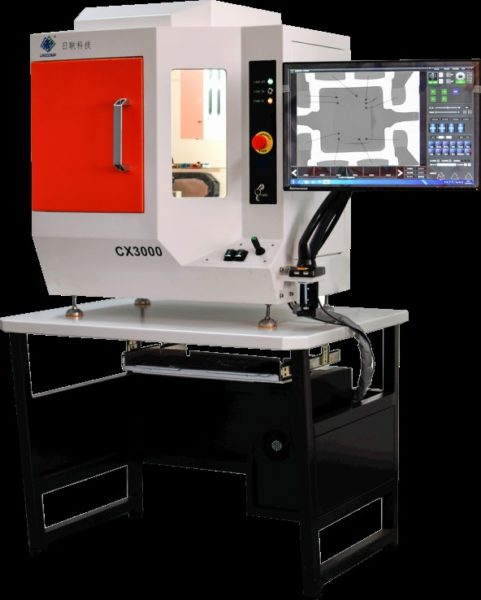

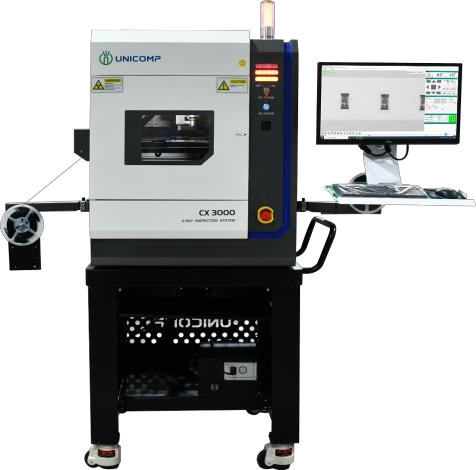

Unicomp CX3000 Desktop X-Ray Inspection Equipment

User friendly and compact CX3000 x-ray inspection machine

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Compact design

Easy operation

High resolution

Information

Machine Model

CX3000 Desktop X-Ray Inspection Equipment

Manufacturer

Unicomp

Key Features

1 year warranty, Compact design, Easy operation, High resolution

Description:

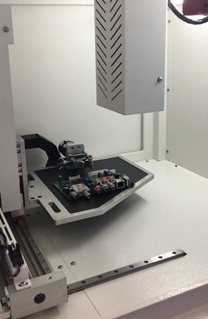

The CX3000 desktop machine features a 1.5μm 100kV X-ray tube, a dynamic FPD with high-resolution of 1000×1124 and is equipped with 360° rotary fixture to eliminate PoP shadow. This model is user friendly with the detection area being easily positioned by an external rocker.

G. System Specifications

Technical Data

Specification

X-Ray tube max. voltage, type

90kV, closed

X-Ray tube power consumption

X-Ray tube focal spot size

5µm

X-Ray tube magnification

200x

Detector type

FPD
